FPM-5171G
Tuotenro
FPM-5171G-R3AE
Toimitusaika 21-30pv

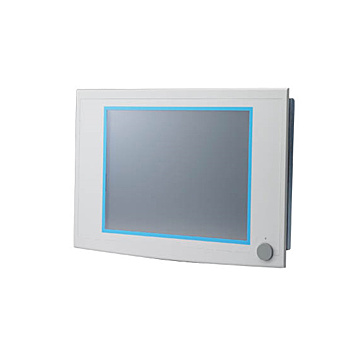

17" SXGA Industrial Monitor with Resistive Touchscreen, Direct-VGA, and DVI Ports
Ominaisuudet
* 17" SXGA TFT LCD with resolution up to 1280 x 1024
* Direct VGA & DVI-D video input interface
* Lockable OSD keys with 2 user-defined contrast/brightness settings
* The flat-sealed front panel design
* Robust design with anti-rust chassis and aluminum die-cast front panel
* Front access USB connector
* Combo RS-232 & USB interface for touchscreen function (optional)
* Supports industrial 10-30 VDC power input
* Supports Panel, Wall, Desktop, Rack or VESA arm mounting
* Front Panel NEMA4/IP65 Compliant
* Direct VGA & DVI-D video input interface
* Lockable OSD keys with 2 user-defined contrast/brightness settings
* The flat-sealed front panel design
* Robust design with anti-rust chassis and aluminum die-cast front panel
* Front access USB connector
* Combo RS-232 & USB interface for touchscreen function (optional)
* Supports industrial 10-30 VDC power input
* Supports Panel, Wall, Desktop, Rack or VESA arm mounting
* Front Panel NEMA4/IP65 Compliant
Spesifikaatiot
Display size
17" TFT LCD
Input interface
VGA, DVI-D
Native resolution
1280*1024
Display properties
Brightness 300cdm2
View Angle (H/V) 160/160
Display color 16.2M
Chassis structure
Aluminium front panel
Steel chassis
Power Supply
a) 10-30V DC
b) 230V AC adapter optional
Dimension & Weight
481.9 x 355.9 x 58.5 mm
8kg
Environment Specifications
Operating Temperature 0..50C
Software Support
Windows 2000/Windows XP touch drivers
Mounting
Panel, wall, VESA arm, or stand, 19" rackmount with
optional mounting kit
Safety: BSMI, CCC, CE, FCC, UL
For more information see datasheet.
17" TFT LCD
Input interface
VGA, DVI-D
Native resolution
1280*1024
Display properties
Brightness 300cdm2
View Angle (H/V) 160/160
Display color 16.2M
Chassis structure
Aluminium front panel
Steel chassis
Power Supply
a) 10-30V DC
b) 230V AC adapter optional
Dimension & Weight
481.9 x 355.9 x 58.5 mm
8kg
Environment Specifications
Operating Temperature 0..50C
Software Support
Windows 2000/Windows XP touch drivers
Mounting
Panel, wall, VESA arm, or stand, 19" rackmount with
optional mounting kit
Safety: BSMI, CCC, CE, FCC, UL
For more information see datasheet.
Näytön koko | 17" |
---|---|
Kosketusominaisuuden tyyppi | Resistive |
Näytön signaali (input) | VGA, DVI-D |
