GM-1000
Tuotenro
GM-1000
Toimitusaika 21-30pv

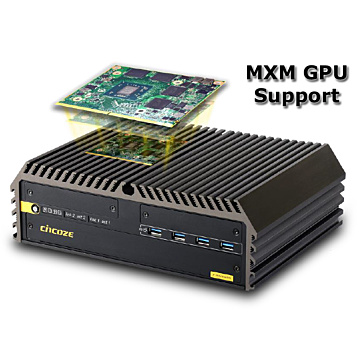

9th/8th Gen Intel® Xeon®/Core™ Embedded GPU Computer, Supports 1x MXM 3.1 GPU Expansion Socket
- Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores
- Supports 1x MXM 3.1 Type A/B form factor GPU module expansion
- 2x DDR4 SO-DIMM sockets, up to 2666MHz, 64GB
- Supports wide operating temperature (-40°C - 70°C) and vibration/shock tolerance (5G/50G)
- 260 mm x 200 mm x 85 mm compact footprint
- Flexible functionality expansions:
- M.2 E key (CNVi), full-size Mini-PCIe and M.2 M Key (NVMe SSD)
- Proprietary CMI interface for various I/O expandability
- Proprietary CFM interface for PoE+ or Power Ignition Sensing
| System | |
| Processor | Supports 9th/8th Gen Intel® Xeon®/Core™ Processor up to 8 cores |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel C246 (Server class chipset) |
| Storage | 2 x 2.5” SATA HDD drive bay (max. up 15mm height) 3 x mSATA (shared by mini-pcie Support S/W RAID 1 x PCIex4 M.2 Key M 2280, NVMe SSD |
| Storage Support | |
| Memory | 2 x DDR4-2666/2400 SO-DIMM, up to 64GB |
| Audio | Realtek® ALC888, High Definition Audio |
| Graphics | Integrated Intel® UHD 630 Graphics |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 4x USB 3.2 (Gen2 10Gbps) 4x USB 3.2 (Gen1 5Gbps) |
| Serial | 4 x RS-232/422/485 |
| Video | 1 x DisplayPort 1 x HDMI 1 x DVI-I (VGA with adapter) |
| Ethernet | 2 x 10/100/1000Mbps (Intel® i219V-LM, i210-IT) |
| Other Ports | Line-out, 1 x Mic-in 1 x Remote Power On/OFF 2 x External Fan Connectors |
| Expansion | |
| Expansion Interface | 1 x CMI (High Speed) 1 x CMI (Low Speed) 1 x CFM IGN interface 1 x MXM Carrier Board Interface for MXM GPU Module 3 x Full-size PCI-Express Mini Card slot 2 x SIM sockets 2 x Antenna holes |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 9-48V DC Input 230V AC-DC adapter |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C , With Wide-Temp SSD (35W CPU, non GPU) |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive cooling Optional external Chassis FAN module (needed for high performance CPU & GPU) |
| Dimensions / Weight | |
| Weight (kg) | 4.6 kg |
| Dimensions | 260 x 200 x 85 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, EN 50121-3-2, E-mark |
