GOT110A-TWL-WCD
Tuotenro
GOT110A-TWL-WCD
Toimitusaika 21-30pv
10.1" WXGA TFT Fanless Touch Panel Computer with Intel® Processor N150
- 10.1" WXGA TFT LCD, 350 nits with LED backlight, PCAP
- Fanless design with Intel® N-series N150 (Twin Lake), onboard 8GB LPDDR5 memory

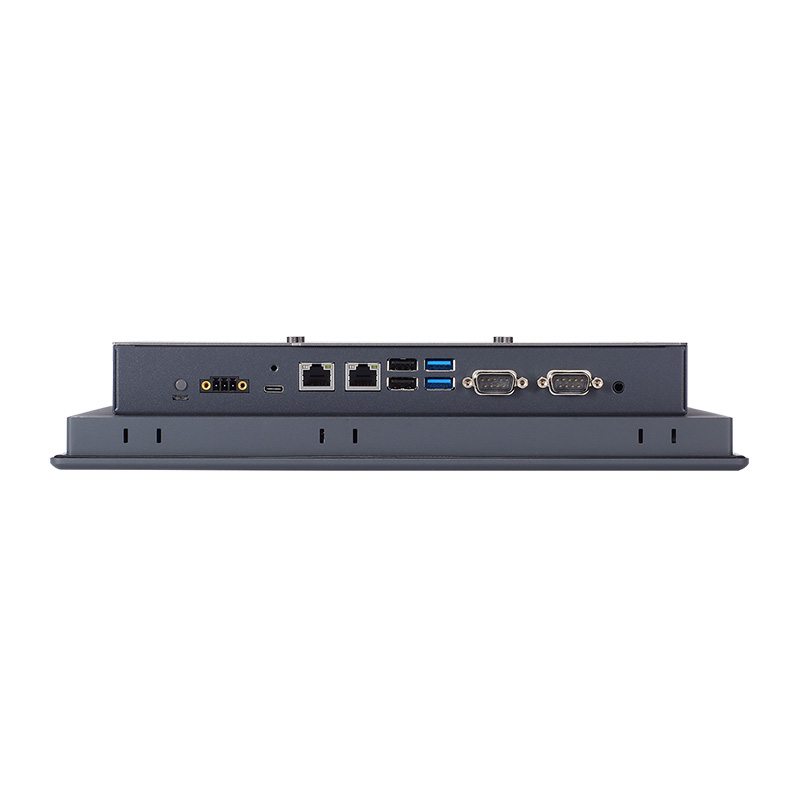

- 2 LAN, 4 USB, 1 USB Type C, 2 COM, and 1 Line-out
- Front bezel IP65 & rear cover IP30
- AT/ATX mode selectable via hardware switch
- Supports M.2 2242/2280 M-key (PCIe Gen 3 x2 NVMe), mSATA, and Wi-Fi (6E/7) or 4G LTE
- Operating temperature: -10°C to +50°C
- Supports panel mount, wall mount, VESA, and desktop stand
| System | |
| Processor | Intel® processor N150 4 cores (up to 3.6 GHz) |
| Security Hardware | TPM 2.0 |
| Chipset | SoC integrated |
| Storage | 1 x M.2 Key M 2242/2280 (PCIe Gen 3 x2 NVMe) 1 x mSATA; supported via full-size mini PCIe slot (shared) 1 x removable 2.5" SATA SSD |
| Memory | Onboard 8GB LPDDR5 |
| Display | |
| Screen Size | 10.1" TFT LCD |
| Screen Resolution | 1280x800 |
| Display Ratio | |
| Contrast Ratio | |
| Brightness | 350 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.2 Gen2 USB Type-C (Gen 2x1, 10Gbps, 5V/3A output, DP 1.4) |
| Serial | 1x RS-232 1x RS-232/422/485 |
| Video | - |
| Ethernet | 2 x 2.5GbE Ethernet (I226-V, supports UEFI PXE boot and LAN wake-up, w/o TSN) |
| Other Ports | 1 x Line-out |
| Operating System | |
| Operating System | Windows 11 / Linux |
| Power | |
| DC Input / Source Voltage | 9-36V DC 1 x Terminal block |
| Power Management | |
| Expansion Slots | |
| 1 x M.2 E Key 2230 for wireless (PCIe & USB 2.0) 1 x full-size mini PCIe slot (PCIe/SATA +USB) 1 x Nano SIM card slot |
|
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | -10ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.8 kg |
| Dimensions | 263 x 38 x 182 mm |
| Enclosure | |
| Bezel | IP65 Front |
| Material | Aluminum / Metal |
| Mounting | Panel mount kit Wall mount kit Stand kit |
| Certification | |
| Certification | CE Class A, IEC/EN 61000-6-4, IEC/EN 61000-6-2 (heavy industrial grade) UKCA FCC 47 CFR Part 15 Subpart B (Class A) RoHS standard |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| Näytön koko | 12.1" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
