GOT318W-521
Tuotenro
GOT318W-521
Toimitusaika 21-30pv

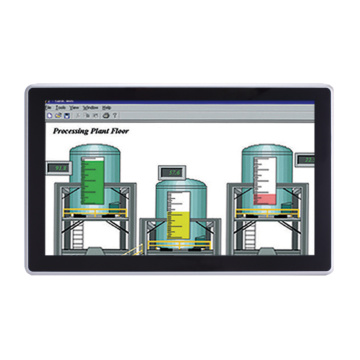

18.5" FHD TFT Multi-touch Panel Computer with LGA1151 9th/8th Gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® Processo
- 18.5" WXGA projected capacitive multi-touch widescreen
- Fanless design with LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W)
- Supports WLAN module and antenna (optional)
- 2.5" SATA HDD/SSD
- 2 LAN, 4 USB, 2 COM, 1 HDMI, 1 DisplayPort, and 1 VGA
- IP65-rated aluminum front bezel
- Supports panel mount, VESA mount, and wall mount
| System | |
| Processor | LGA1151 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® Gold or Intel® Celeron® processor (up to 35W) |
| Security Hardware | TPM 2.0 |
| Chipset | Intel® H310 |
| Storage | 1 x mSATA 1 x 2.5” SATA HDD/SSD (7 mm and 9.5 mm, removable) |
| Memory | 1 x 260-pin DDR4-2666/2400 SO-DIMM, up to 32GB |
| Display | |
| Screen Size | 18.5" TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | 16 ::09 |
| Contrast Ratio | |
| Brightness | 500 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1 x 9-pin D-sub Male for RS-232 1 x COM for RS-232/422/485 |
| Video | 1 x HDMI 1 x DP 1 x VGA |
| Ethernet | 2 x RJ45 GbE |
| Other Ports | 1 x Line-out 1 x Phoenix type connector for DC power input 1 x Switch for power on/off (ATX) 1 x Remote power switch 1 x AT/ATX switch (DC type only) 1 x Grounding hole (DC Version) |
| Operating System | |
| Operating System | Windows 10/ Linux |
| Power | |
| DC Input / Source Voltage | 24V DC 230V AC-DC Adapter (optional) |
| Expansion Slots | |
| Expansion | 1 x Full-size PCI-Express Mini Card slot (PCIe + SATA
+ USB) 1 x M.2 Key E 2230 (for Wi-Fi) |
| Multimedia | |
| Integrated Speakers | - |
| Operating Temperature | |
| Operating Temperature | 0ºC to 50ºC |
| Humidity Range | 20% to 90% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 7.8 kg |
| Dimensions | 460.8 x 77 x 285 mm |
| Enclosure | |
| Bezel | IP65 |
| Material | |
| Mounting | Panel mount Wall mount VESA arm |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, EN 61000-6-2, EN 61000-6-4 |
| Jäähdytys | Fanless |
|---|---|
| Näytön koko | 18.5" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Coffee Lake (8th Gen Core i3/i5/i7) |
