GOT318WL-845

Toimitusaika 21-30pv
Tuotenro
GOT318WL-845

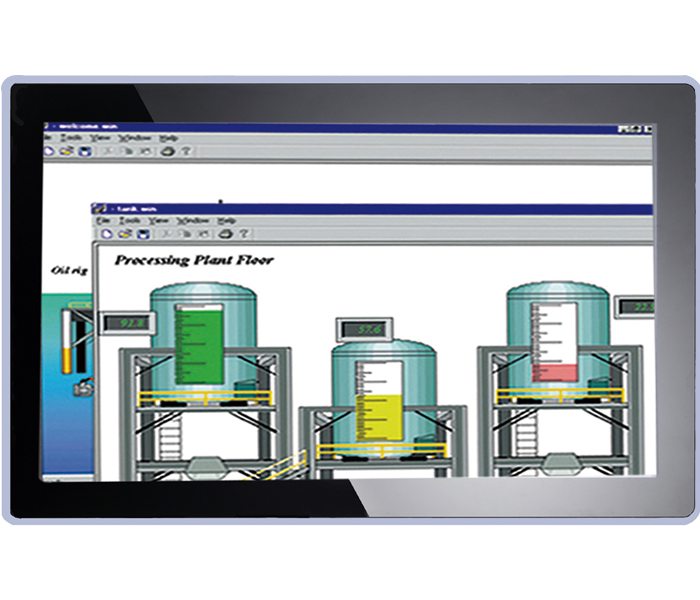

18.5" WXGA TFT Multi-touch Panel Computer with Intel® Pentium® Processor N3710
Ominaisuudet
* 18.5" WXGA projected capacitive multi-touch wide screen/Flat resistive touch
* Fanless design with Intel® Pentium® processor N3710
* 2.5" SATA HDD & mSATA
* 3G, WLAN module & antennas (optional)
* 2 GbE LANs, 2 USB 3.0, 2 USB 2.0 and 2 COM
* IP65 aluminum front bezel
* Supports panel mount and optional VESA arm/desktop stand/wall mount
* Adjust RS-232/422/485 setting via BIOS
Spesifikaatiot
LCD Specifications
18.5" WXGA TFT LCD with LED backlight
Resolution : 1366 x 768
Brightness : 250 cd/m²

Touchscreen
Projected capacitive multi-touch screen

Processor Core Logic System

CPU:
Intel® Pentium® processor N3710

System Chipset:
SoC

System Memory:
1 x 204-pin DDR3L-1333 DIMM, up to 8 GB

Ethernet
2 x RJ-45 GbE LAN

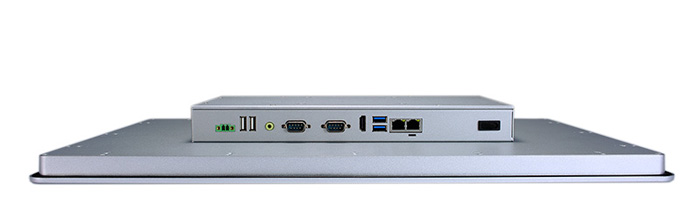

I/O Interface
1 x RS-232/422/485
1 x RS-232
1 x Switch for power on/off
2 x USB 2.0
2 x USB 3.0
1 x Audio (Line-out)
2 x 10/100/1000 Mbps Ethernet

Storage
1 x mSATA
1 x 2.5" SATA HDD

Expansion
1 x Full-size PCI Express Mini Card with mSATA
1 x Full-size PCI Express Mini Card with SIM slot

Power Supply
24 VDC


Software Support
Windows 10

Environment Specifications
Operating Temperature 0°C to 50°C
Storage temperature: -20°C ~ 60°C
Humidity: 10% ~ 90% (non-condensing)

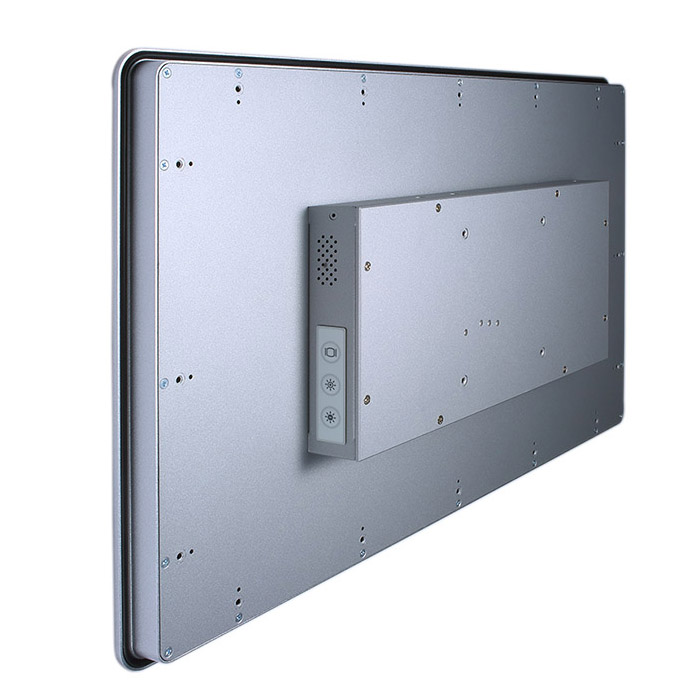

Mechanical
Construction: Aluminium housing
Mounting: Panel Mounting , VESA-100
Weight: 6kg
Dimension: 460.8 x 58.5 x 285 mm

Safety: CE
