GOT521-RPL-WCD
Tuotenro
GOT521-RPL-WCD
Toimitusaika 21-30pv

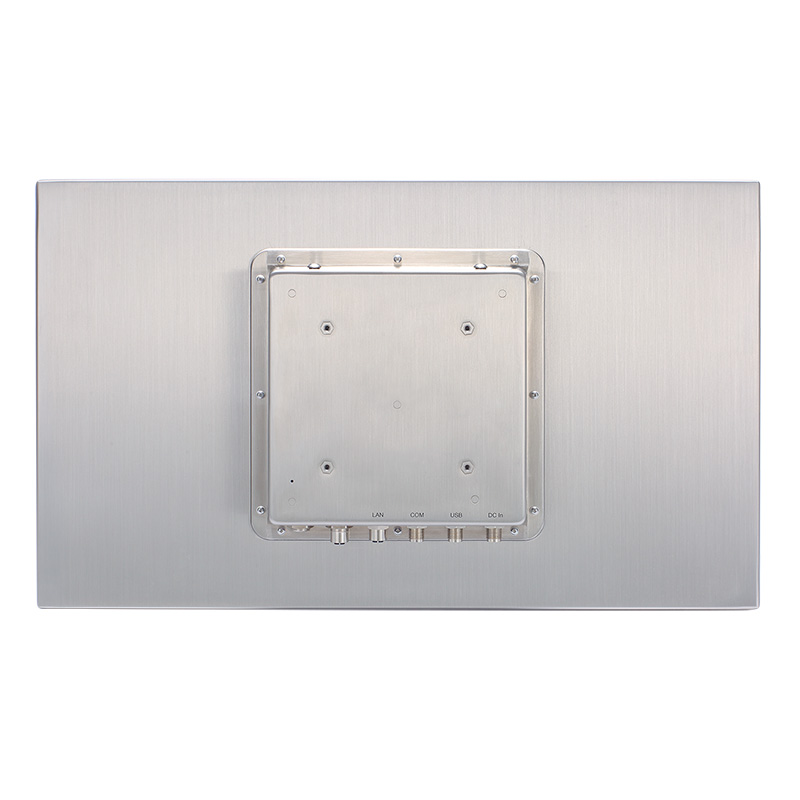

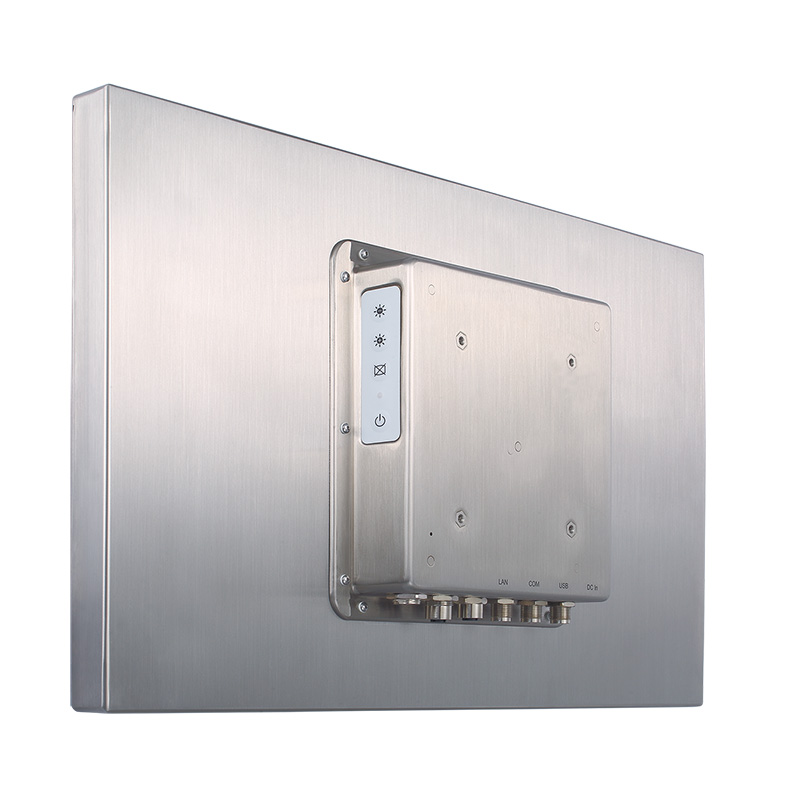

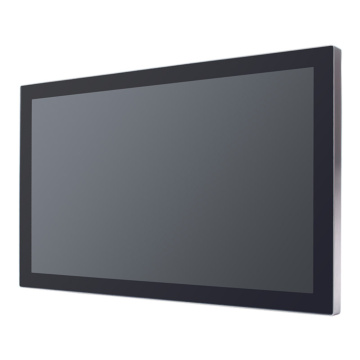

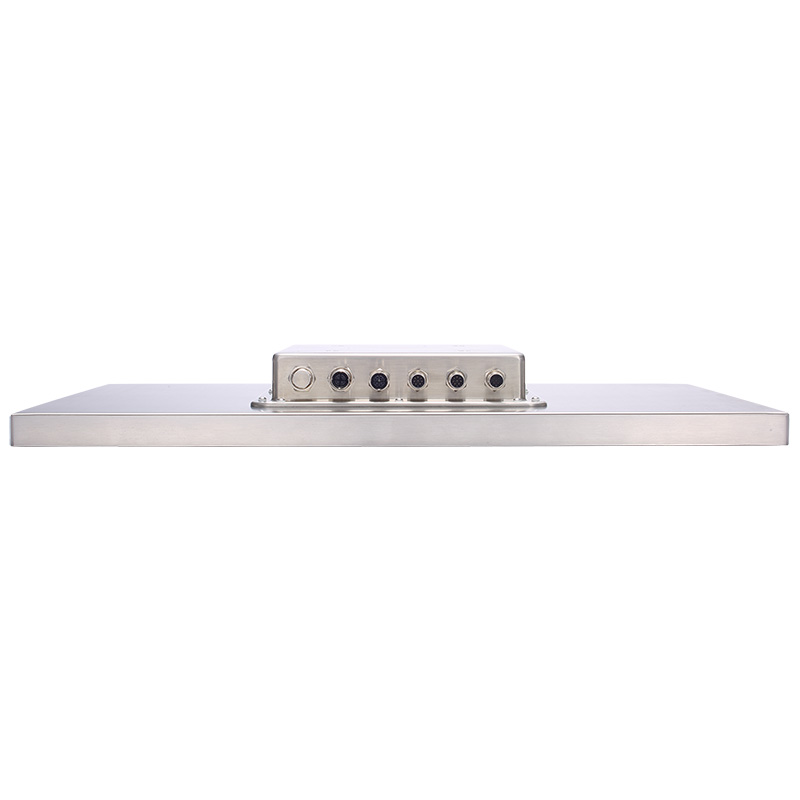

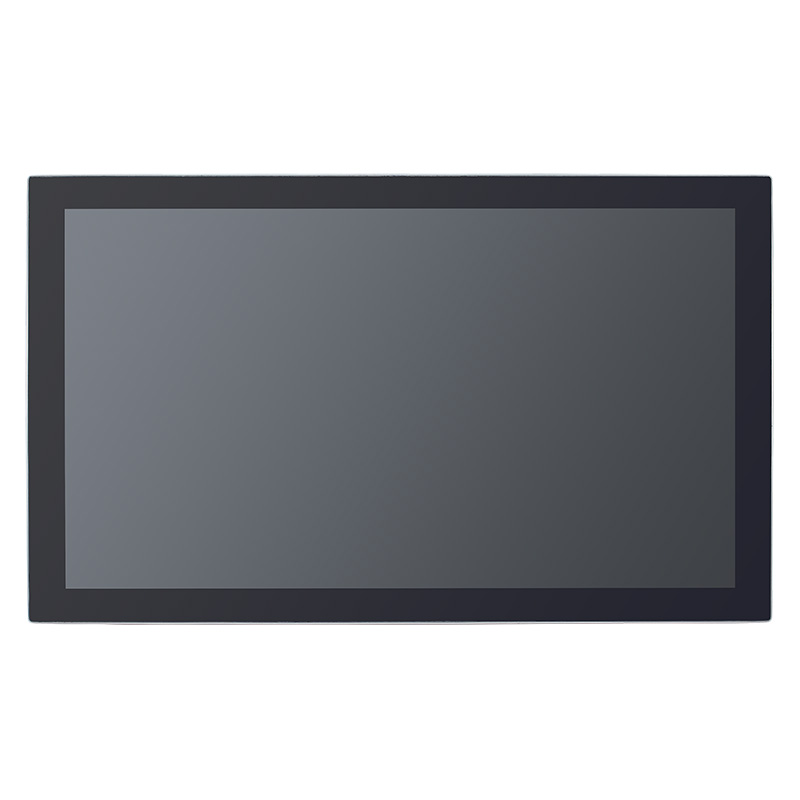

21.5" FHD TFT IP66-rated Stainless Steel Fanless PCT Panel Computer with Intel® Core™ i5-1335UE or Processor U300E and Flat Bezel Design (-20°C to +50°C)
- 21.5" FHD TFT flat bezel LCD display
- Fanless design with Intel® Core™ i5-1335UE
- Full Stainless SUS304 enclosure with IP66 & IP69K
- Supports vertical installation with 90° rotated I/O
- Supports proximity and light sensors
- EC control (backlight on/off, brightness, light sensor, touch on/off, and Super I/O)
- Intelligent power management solution (Smart Ignition)
- Programmable OSD function key
- Operating temperature: -20°C to +50°C
| System | |
| Processor | Intel® Core™ i5-1335UE 1.3 GHz or processor U300E 1.1 GHz |
| Memory | 1 x 262-pin DDR5 SO-DIMM, up to 48GB |
| Chipset | SoC |
| Storage | 1 x M.2 2280, NVMe (Gen4x4) or auto-detect SATA 1 x mSATA |
| Expansion | 1 x Full-size PCIe Mini Card slot (USB + PCIe/SATA) with nano-SIM socket; supports PCIe Mini Card or mSATA with auto-detection 1 x M.2 Key E 2230 slot for Wi-Fi + Bluetooth module 1 x M.2 Key M 2280 slot (PCIe Gen4 x4/SATA) for SSD (NVMe/SATA) or PCIe device with auto-detection |
| Others | 1 x Optional M12 I/O blank via cable (2 x USB 2.0, 1 x COM RS-232) 1 x M12 DC power connector (A-coded) with ACC support DTPM2.0 |
| Display | |
| Screen Size | 21.5” FHD TFT LCD |
| Screen Resolution | 1920*1080 |
| Display Ratio | wide |
| Contrast Ratio | |
| Brightness | 400 nits |
| Viewing Angle | |
| Number of Colors | |
| Touch Screen | |
| Touchscreen | Projected Capacitive (Multi-touch) |
| I/O Ports | |
| USB 2.0 | 1x USB2.0 Dual-port (A-coded) |
| USB 3.0 | |
| Serial | 1 x RS-232/422/485 (default RS-232, A-coded) |
| Video | |
| Ethernet | 1 x 2.5GBase-T Ethernet with Intel® I226 (X-coded) 1 x 1GBase-T Ethernet with Intel® I210 (X-coded) |
| Other Ports | |
| Operating System | |
| Operating System | Windows 10 /Windows 11 / Linux |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Power Comsumption | 86.4W |
| Operating Temperature | |
| Operating Temperature | -20ºC to 50ºC |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 5.1kg |
| Dimensions | 531,6 x 60.5 x 318 mm |
| Enclosure | |
| Protection | IP66 ALL sides |
| Material | Stainless Steel (SUS 304) |
| Mounting | VESA |
| Certification | |
| Certification | CE Class A, IEC/EN61000-6-4, IEC/EN61000-6-2 FCC 47 CFR Part 15 Subpart B (Class A) UKCA RoHS standard |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Jäähdytys | Fanless |
| Näytön koko | 21.5" |
| Kosketusominaisuuden tyyppi | Projected Capasitive (PCAP) |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
