GOT-815L-511

Tuotenro
GOT815L-511
Toimitusaika 21-30pv

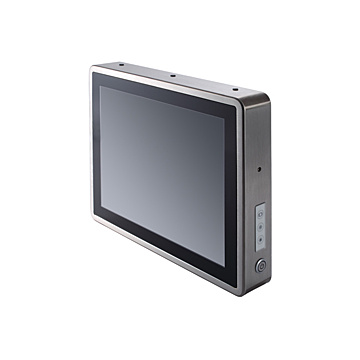

15" XGA TFT IP66 & IP69K-rated Stainless Steel Fanless PCT (or Resistive Touch) Panel Computer with Intel® Core™ i5-7300U Processor and Flat Bezel Design (-20°C to +50°C)

  • 15" XGA TFT flat bezel LCD display
  • IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
  • Full stainless steel enclosure with type 316
  • -20°C to +50°C wide operating temperature range
  • Fanless design with Intel® Core™ i5-7300U processor
  • Optional Wi-Fi/3G kit for wireless network connectivity
  • 9 to 36 VDC wide range power input
  • Supports VESA mount
  • M12 type connectors for harsh environments
Ominaisuudet
* 15" XGA TFT flat bezel LCD display
* IP66/IP69K-rated (NEMA 4X) water/dust/corrosion-proof design
* Full stainless steel enclosure with type 316
* -20°C to +50°C wide operating temperature range
* Fanless design with Intel® Core™ i5 processor
* 9 ~ 36 VDC wide range power input
* Supports suspension and VESA mount
* M12 type connectors for harsh environments
Pakkaus sisältää
GOT-815L-511 Panel PC
*i5-7300U cpu
*4096MB DDR4
*120 GB SATA SSD, MLC

Waterproof cables:
2x USB Cable
2x COM Cable
1x LAN cable
1x Power cable
Spesifikaatiot
System specifications

* CPU: Intel® Core™ i5-7300U 3.5 GHz (Kaby Lake)
* Chipset: SoC
* DRAM: 1 x 260-pin SO-DIMM DDR4-2133, up to 16GB


* Expansion: none
* Fanless/Fan: Fanless
* Touch screen: Analog resistive / Projected Capasitive

Standard I/O ports: (IP66 connectors)
2 x M12-type RS-232/422/485 (default RS-232, A-Coded)
4 x M12-type USB 2.0 (A-Coded)
1 x M12-type 10/100/1000Mbps (X-Coded)

Display specifications

* LCD: 15" XGA TFT
* Resolution: 1024x768
* Luminance: 420 cd/m

Mechanical specifications

* Construction: Stainless Steel, IP66
* Dimensions: 382 x 55 x 305 mm
* Power input: DC 12-36V
* Operating temperature: -20~55C
* Storage temperature: -20~60C
* Weight 5.2kg


* Rating: IP 66
* Certificate: CE
* Mounting: VESA 100 , Stainless steel mount
Lisätietoja
JäähdytysFanless
Näytön koko15"
Kosketusominaisuuden tyyppiResistive
CPU FamilyKaby Lake (7th 8th Gen Core i3/i5i7/Celeron)
