GP-3100
Tuotenro
GP-3100
Toimitusaika 21-30pv

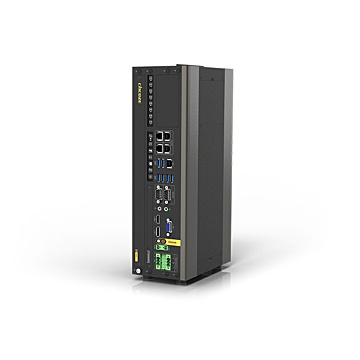

14/13/12th Gen Intel® Core™ Modular GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W
- Intel® 14/13/12th Gen Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB
- 4x 2.5GbE LAN and optional 2x 10GbE LAN
- 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
- 1 x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1 x M.2 Key B Type 2280 Socket for Add-on Card Expansion
- 4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm) , 1x M.2 key M for NVMe SSD
- Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
- Versatile Mounting Methods (Tower Stand / Desktop / 19”Rack / Vehicle Mount)
- Wide Operating Temperature -40°C to 70°C
| System | |
| Processor | Supports 13th/12th Gen Intel® Core™ Processors |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel R680E Chipset |
| Storage | 4x 2.5” Front Accessible SATA3 HDD/SSD Bay 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD 1x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD |
| Storage Support | Support RAID 0/1/510 |
| Memory | 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64 GB |
| Graphics | Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 6x USB 3.2 Gen1, Type A (5Gbps) |
| Serial | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 |
| Video | 1 x DisplayPort 1 x HDMI 1 x VGA |
| Ethernet | 4x 2.5GbE LAN , RJ-45 (Intel I225) 1x Gbe LAN, RJ-45, (Intel I219) |
| Other Ports | Mic-in/Line-out 1x Remote Power On/Off Connector |
| Expansion | |
| Expansion Interface | Optional GPU Expansion Box - 1 x PCIe x 4 + 1 x PCIe x 16 - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4 1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key B 2280 Socket, Support Add-on Card Expansion (PCIe Gen3x1) 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion 1x CMI (Combined Multiple I/O) High Speed Interface 1x CMI (Combined Multiple I/O) Low Speed Interface 2x SIM Socket |
| Operating System | |
| Operating System | Windows® 10 / Windows 11 / Linux |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~48VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD, 35W TDP CPU -40°C ~ +60°C with W.T. SSD, 65W TDP CPU -40°C ~ +50°C with W.T. SSD, 80W TDP CPU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | 2x Fan Kits ( Air-flow isolated from the electronics ) |
| Dimensions / Weight | |
| Weight (kg) | 7.7 kg |
| Dimensions | 105 x 195 x 370 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount |
| Peripherals & Devices | |
| Accessories | Optional Modules |
| Extra Features | |
| Certification | |
| Certification | EMC: CE, UKCA, FCC, ICES-003 Class A EN 50155 (EN 50121-3-2 Only) E-mark (Pending) EMI: CISPR 32 Conducted & Radiated: Class A EN/BS EN 50121-3-2 Conducted & Radiated: Class A EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A EN/BS EN61000-3-3 Voltage fluctuations & flicker FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A EMS: EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV EN/IEC 61000-4-5 Surges: AC Power: 2 kV EN/IEC 61000-4-6 CS: 10V EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz Fire Protection: EN 45545-2 |
| Valmistaja / Brand | Cincoze |
|---|---|
| Jäähdytys | Kotelo tuuletin |
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -40..70C |
