GPOE-4P PoE PCIE Adapter

Tuotenro
IEI_GPOE-4P
Toimitusaika 14-22pv

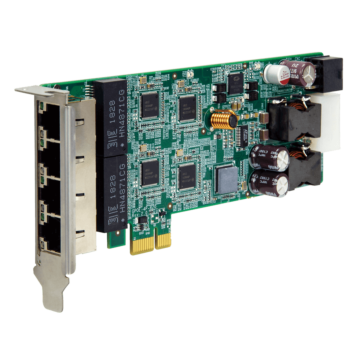

PCI Express Power over Ethernet card, 4-port 1000 Base(T), 802.3at/af compliant, low profile

  • PCI Express® x1 compliant
  • Support for total 90 watts under full load
  • Support link aggregation/jumbo frames (9 Kbyte)
  • Supports 12V~24V DC input power
System
Cooling method Fanless
Physical Characteristics
Dimensions (mm) 130x65mm
Net Weight 110g
I/O Interface
Ethernet Intel® I211-AT controller
9kB jumbo frame
IEEE 802.3az, IEEE1588
Power
Input 12~24V DC input
1 x Internal DC input (1x4 pin)
1 x Internal DC input (2x3 pin)
**Caution! Choose one input only at a time
Environmental
Operating Temperature 0°C ~ 60°C

Card Slot Interface
PCIe PCI Express x1
Lisätietoja
Valmistaja / BrandIEI
Connection4x 1GBe LAN Ethernet IP
Data InterfacePCIEx1
