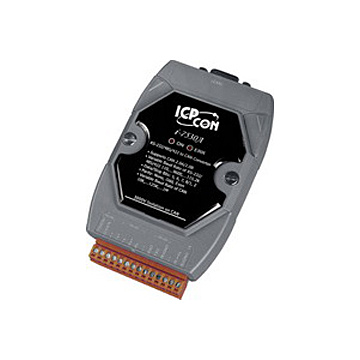

I-7530A-G Serial to CAN converter
Tuotenro
I-7530A-G
Toimitusaika 8-16pv
Intelligent RS-232/485/422 to CAN converter
Ominaisuudet
* Compatible with CAN specification 2.0A and B
* Fully compatible with ISO 11898-2 standard
* Support various baud rate from 10K bps to 1M bps
* Jumper for 120 Ω terminator resistor
* Software configurable CAN and RS-232 /422/485 communication parameters
* Power, data flow and error indicator for CAN and RS-232/422/485
* Watchdog inside
* Provide the transparent communication between the RS-232/485/422 devices via CAN bus
* Enable different RS-232/485/422 devices into an individual group in CAN bus network.
(Full-duplex communication mode of RS-232/422 devices is not supported)
* Fully compatible with ISO 11898-2 standard
* Support various baud rate from 10K bps to 1M bps
* Jumper for 120 Ω terminator resistor
* Software configurable CAN and RS-232 /422/485 communication parameters
* Power, data flow and error indicator for CAN and RS-232/422/485
* Watchdog inside
* Provide the transparent communication between the RS-232/485/422 devices via CAN bus
* Enable different RS-232/485/422 devices into an individual group in CAN bus network.
(Full-duplex communication mode of RS-232/422 devices is not supported)
| I/O | CAN bus |
|---|---|
| Valmistaja / Brand | ICP DAS |
| Connection | RS-232 |
