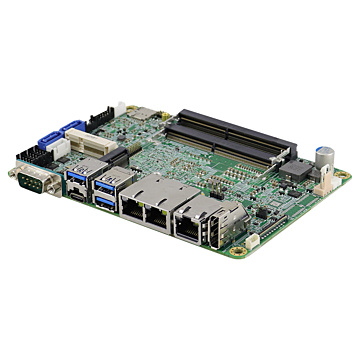

IB836F-6425E
Tuotenro
IB836F-6425E
Toimitusaika 21-30pv
- Onboard Intel® Atom® x6000 Series processor
- 2x DDR4-3200 SO-DIMM, Max.32GB, supports IBECC
- Supports 2x DisplayPort (DP and Type-C), eDP or 24-bit dual-channel LVDS
- 3x Intel® PCI-E GbE LAN
- 2x USB 2.0, 4x USB 3.1, 2x SATA III
- 1x M.2 sockets (E-Key), 1x Mini PCI-E slot (Full-size)
- Watchdog timer, Digital I/O, TPM (2.0), mSATA(Share with SATA port)
- Wide-range operating temperature from -40°C to 85°C
| Form Factor | |
| Form Factor | 3.5” SBC |
| System | |
| Processor | Intel® Atom® QC x6425E |
| Integrated Graphics | |
| Security Hardware | |
| Chipset | |
| Storage | 1x mSATA (Share with SATA port) 2x SATA III |
| Storage Support | |
| Memory | 1x DDR4-3200 Max. 32GB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | |
| USB 3.1 | 3 x USB3.1 1 x USB-C |
| Serial | 3 xRS-232 1 xRS-232/422/485 |
| Video | 1 x DisplayPort 1 x DVI-D 1 x HDMI |
| Ethernet | 3 x 10/100/1000 Mbps |
| Other Ports | Audio , Realtek ALC269 w/ class-D amplifier DIO |
| Expansion | |
| Expansion Interface | 1x M.2 (E-Key, type: E2230) |
| Operating System | |
| Operating System | WIN10 |
| Power | |
| DC Input / Source Voltage | 9-36V DC |
| Operating Temperature | |
| Operating Temperature | Operating Temperature -40°C to 85°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 102mm x 147mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | iBASE |
|---|---|
| Socket | SoC |
| Form Factor | 3.5" Embedded |
