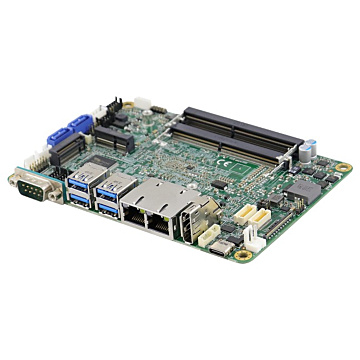

IB919AF

Tuotenro
IB919AF-xxx
Toimitusaika 21-30pv
  • Onboard 8th Gen Intel® Core™ i7/i5/i3/ Celeron® processor
  • 2x DDR4-2400 SO-DIMM, Max.32GB, Non-ECC
  • 2x DisplayPort (DP connector & Type C), eDP or 24-bit dual-channel LVDS
  • 2x Intel® PCI-E GbE LAN
  • Watchdog timer, Digital I/O, TPM (2.0)
  • 2x USB 2.0, 4x USB3.1 (Type A), 1x USB Type-C, 2x SATA III
  • 2x M.2 sockets (M/E-Key)
Form Factor
Form Factor 3.5” SBC

System
Processor 8th Gen Intel® Core™ i7-8665UE (1.7GHz/4.4GHz)
8th Gen Intel® Core™ i5-8365UE (1.6GHz/4.1GHz)
8th Gen Intel® Core™ i3-8145UE (2.2GHz/3.9GHz)
Intel® Celeron® 4305UE (2.0GHz)
Integrated Graphics
Security Hardware
Chipset
Storage 1x 1x M.2 (M2280, NVMe)
2x SATA III
Storage Support
Memory 2x DDR4-2400 Max. 32GB
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0
USB 3.1 4 x USB3.1
1 x USB-C
Serial 3 xRS-232
1 xRS-232/422/485
Video 2 x DisplayPort (DP & type C)
Ethernet 2 x 10/100/1000 Mbps
Other Ports Audio , Realtek ALC269 w/ class-D amplifier
DIO
Expansion
Expansion Interface 1x M.2 (M2280, Support NVMe)
1x M.2 (E2230, Support CNVi)
Operating System
Operating System WIN10
Power
DC Input / Source Voltage 9-24V DC
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 102mm x 147mm
Certification
Certification CE
Lisätietoja
Valmistaja iBASE
Socket SoC
Form Factor 3.5" Embedded
