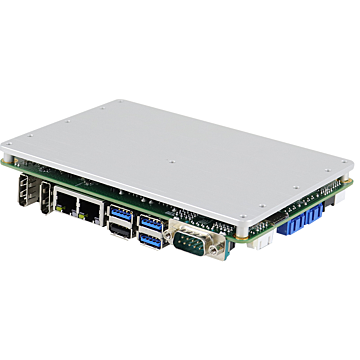

IB953

Tuotenro
IB953-xx
Toimitusaika 21-30pv
  • Onboard 11th Gen Intel® Core™i7/i5/i3/ Celeron® processor
  • 2x DDR4-3200 SO-DIMM, Max.64GB
  • Supports 2x DisplayPort, eDP and 24-bit dual-channel LVDS
  • 2x Intel® PCI-E GbE LAN
  • 3x USB 2.0, 3x USB 3.1, 2x SATA III
  • 3x M.2 sockets (B-Key/ E-Key and M-Key)
  • Watchdog timer, Digital I/O, TPM (2.0), 5G compatible
Form Factor
Form Factor 3.5” Embedded SBC


System
Processor 11th Gen Intel® Core™ i7-1185G7E
11th Gen Intel® Core™ i5-1145G7E
11th Gen Intel® Core™ i3-1115G4E
Intel® Celeron® 6305E
Integrated Graphics Intel® Gen 12 Graphics
Security Hardware
Chipset
Storage 1x M.2 (M-Key)
2x SATA III
Storage Support
Memory 2 x 260-pin SO-DIMM DDR4 max 64GB
I/O Ports
USB 2.0 3 x USB 2.0
USB 3.0
USB 3.1 3 x USB3.1
Serial 2 xRS-232/422/485
Video 2 x DisplayPort
eDP
LVDS 24-bit dual-channel
Ethernet 2 x 10/100/1000 Mbps
Other Ports 1 Audio , w/Amplifier
DIO
Expansion
Expansion Interface 1x M.2 (M-Key, Type:2280, Support NVMe)
1x M.2 (E-Key, Type:2230, Support CNVi)
1x M.2 (B-Key, Type:3052, Support 5G)
Operating System
Operating System WIN10
Power
DC Input / Source Voltage 12V – 24V DC input
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 102 x 147 mm
Certification
Certification CE
Lisätietoja
Valmistaja iBASE
Form Factor 3.5" Embedded
