ICO120-E3350
Tuotenro
ICO120-E3350
Toimitusaika 21-30pv

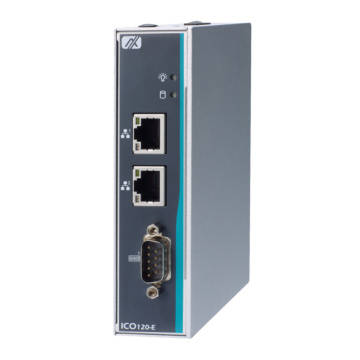

DIN-rail Fanless Embedded System with Intel® Celeron® Processor N3350, COM/CAN/DIO, 2 LAN, and 2 USB
- Extreme cost-effective with fanless and cableless design
- Intel® Celeron® processor N3350, reliable F1 stepping version CPU
- COM/CAN/DIO, 2 USB, and 2 2.5GbE LAN
- Wide operating temperature range from -40°C to +70°C
- 9 to 36 VDC wide range power input
- OVP, UVP, OCP, RPP power protection design
- eAPI for intelligent remote monitoring software integration
| System | |
| Processor | Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W |
| Security Hardware | |
| Chipset | SoC integrated |
| Storage | 1 x mSATA (occupied 1 x PCI Express Mini Card slot) EMMC (optional) |
| Memory | 1 x SO-DIMM DDR3L-1866, up to 8GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | |
| Serial | 1 x DB9 RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 2 x RJ-45 isolated 2.5GbE Ethernet (Intel® I226-IT) Isolation voltage: 1.5 kV |
| Other Ports | DIO 8-bit CAN 2.0 A/B, 1 Mbps bitrate with SocketCAN & J1939 supported |
| Expansion | |
| Expansion Interface | 1 x Full-size Rev. 1.2 PCI Express Mini Card slot with PCIe/USB signal (with SIM socket) 1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 12~24VDC Terminal block |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 0% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 125 x 100 x 31 mm F-model: 125 x 100 x 48mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Din-rail , Wall Mounting |
| Certification | |
| Certification | CE (Class A), FCC (Class A), UL EN 55032 (Class A), EN 55035 FCC part 15 B (Class A) |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Apollo Lake (Celeron/Pentium) |
| Operating Temp | Wide Temp -40..70C |
