ICO230
Tuotenro
ICO230-iMX8MP-A
Toimitusaika 14-22pv

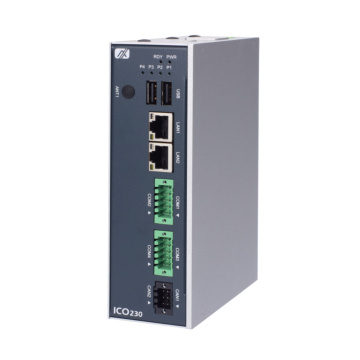

Robust RISC-based DIN-rail Fanless Embedded System with i.MX 8MP Processor, 4 Isolated COM, and 2 Isolated CAN FD
- Fanless design
- RISC-based i.MX 8M-Plus processor
- 2GB LPDDR4 onboard
- 16GB eMMC onboard
- Isolated COM and CAN FD ports
- 9 to 48 VDC wide range power input with terminal block
- Wide operating temperature range from -40°C to +70°C
| System | |
| Processor | NXP i.MX 8M-PLUS ARM CORTEX 4xA53 + M7 Industrial 1.6 GHz |
| Security Hardware | TPM 2.0 |
| Chipset | SoC integrated |
| Storage | 1 x 16GB eMMC onboard 1 x Micro SD card slot |
| Memory | 1 x 2GB LPDDR4 onboard |
| Graphics | Integrated, HDMI output |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | |
| Serial | 4 x Isolated COM with terminal block (RS-232/422/485) |
| Video | 1 x HDMI |
| Ethernet | 2 x 10/100/1000 Mbps (Realtek® RTL8211FDI) 1.5 KV magnetic isolation protection |
| Other Ports | 1 x Console (Mini USB) 2 x Isolated CAN FD with terminal block |
| Expansion | |
| Expansion Interface | 1 x Full-size Rev. 1.2 PCI Express Mini Card slot
with PCIe/USB signal (with SIM socket) 1 x Half-size Rev. 1.2 PCI Express Mini Card slot with mSATA/USB/PCIe signal |
| Operating System | |
| Operating System | Yocto 4.0 LTS (Kirkstone) Kernel: 5.15.52 |
| Power | |
| DC Input / Source Voltage | 9 to 48 VDC (typical 12/24/36V) with terminal block OVP, UVP, OCP, RPP power protection design |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C with W.T. SSD |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 0.7 kg |
| Dimensions | 48 x 110 x 155mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | DIN-rail, wall mount (optional) |
| Certification | |
| Certification | CE (Class A), FCC (Class A) CE/FCC EN 55035 (Class A), FCC part 15 B (Class A) |
| Valmistaja / Brand | Axiomtek |
|---|
