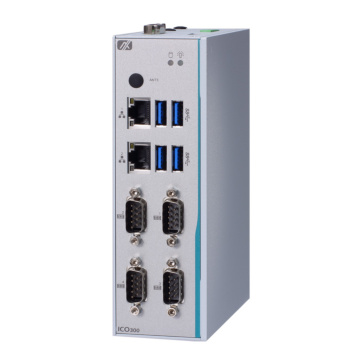

ICO300-83B

Tuotenro
ICO300-83B-N3350
Toimitusaika 21-30pv
  • Cost-effective with fanless and cableless design
  • Intel® Celeron® processor N3350, reliable F1 stepping version CPU
  • 4 isolated COM, 4 USB, 2 GbE LAN
  • 8-bit programmable DIO for IoT gateway applications
  • Wide operating temperature range from -40°C to +70°C
  • 12 to 24 VDC wide range power input
  • OVP, UVP, OCP, RPP power protection design
  • AMS.AXView intelligent remote monitoring software for IIoT
Muokkaa ICO300-83B
ICO300-83B

* Pakolliset kentät

Tuote
ICO300-83B
ICO300-83B

0,00 EUR

Yhteenveto
    System
    Processor Intel® Celeron® N3350 2C @1.1 GHz, TDP: 6W
    Security Hardware
    Chipset SoC integrated
    Storage 1 x mSATA (occupied 1 x PCI Express Mini Card slot)
    1 x Internal 2.5" SATA drive (9.5 mm height)
    Memory 1 x SO-DIMM DDR3L-1866, up to 8GB
    Graphics
    I/O Ports
    USB 2.0
    USB 3.0 4x USB 3.0
    Serial 4 x DB9 Isolated RS-232/422/485
    Video 1 x HDMI
    Ethernet 2 x RJ-45 isolated 10/100/1000 Mbps (Intel® i211-AT)
    - Isolation voltage: 1.5 kV
    Other Ports DIO 8-bit
    Expansion
    Expansion Interface 2 x Full-size Rev. 1.2 PCI Express Mini Card slot:
    1 x USB/PCIe with SIM socket
    1 x mSATA/USB/PCIe
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 12~24VDC
    Terminal block
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.0 kg
    Dimensions 155 x 110 x 48 mm
    Enclosure
    Material Aluminum / Steel
    Mounting Din-rail , Wall Mounting
    Certification
    Certification CE, FCC
    Lisätietoja
    Jäähdytys Fanless
