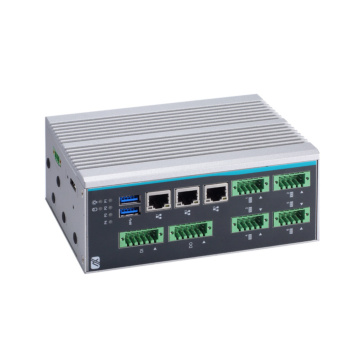

ICO300-83M-E3930-DC
Tuotenro
ICO300-83M-E3930-DC
Varastossa
- Cost-effective with fanless and cableless design
- Intel® Atom® Processor E3930
- 6 isolated COM, isolated DIO (8-in/8-out), 3 GbE LAN
- Wide operating temperature range from -40°C to +85°C
- 9 to 36 VDC power input with OVP, UVP, OCP, RPP
- Supports 5G connectivity
- Supports TPM 2.0
| System | |
| Processor | Intel® Atom® x5-E3930 1.3GHz/2C/6.5W |
| Security Hardware | TPM 2.0 |
| Chipset | SoC |
| Storage | 1 x mSATA (occupied 1 x PCI Express Mini Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Memory | 1 x DDR3L-1866 SO-DIMM, up to 8GB |
| Audio | |
| Graphics | 1 x HDMI (up to 1920 x 1200 @60Hz) |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 2 x USB 3.0 |
| Serial | 2 x Isolated RS-232/422/485 (Phoenix Type) 4 x Isolated RS-232/422/485 (4-wire, Phoenix Type) |
| Video | 1 x HDMI |
| Ethernet | 3 x RJ-45 isolated 10/100/1000 Mbps Ethernet (Intel® i211-AT) Isolation voltage: 1.5 kV |
| Other Ports | 1 x Isolated 8-in/8-out DIO |
| Expansion | |
| Expansion Interface | 1 x M.2 Key B 3052: USB 3.0 /PCIe (for 5G module) 1 x Full-size Rev.1.2 PCI Express Mini Card slot: USB (for LTE/Wi-Fi module) 1 x Half-size Rev.1.2 PCI Express Mini Card slot: USB/mSATA (for mSATA) 2 x SIM Slot |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 24VDC |
| Operating Temperature | |
| Operating Temperature | -40°C ~ +70°C (with Wide-Temp SSD, Memory) |
| Humidity Range | 10% ~ 90%, non-condensing |
| Vibration | 3 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating) |
| Shock | |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.0 kg |
| Dimensions | 66 x 110 x 155 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting /DIN-rail |
| Certification | |
| Certification |
CE/FCC |
| Jäähdytys | Fanless |
|---|
