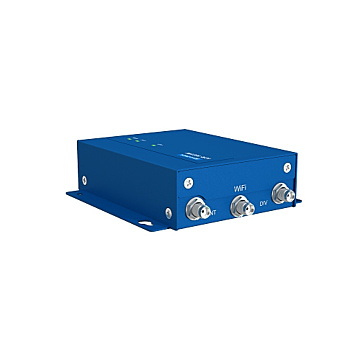

ICR-1601W
Tuotenro
ICR-1601W-1
Toimitusaika 21-30pv
EMEA/LATAM/APAC, 2x Ethernet, Wi-Fi, Metal, Without Accessories
- LTE cat.4, 3G/HSPA+, GPRS/EDGE, EMEA, 2x SIM
- LTE B1, B3, B7, B8, B20
- DIN and Wall mount options
- 2x ETH
- WiFi - 802.11n, AP, Multi SSID, WDS
- Operating temp. –30 °C to +70 °C, Power input : 5-18VDC (DC Jack), accessory with EU type power adapter
- Certifications: CE
- Diagnostics, VPN support, Firewall, WAN failover
| Interface | |
| Region | EMEA/LATAM/APAC |
| ETH Port | 2 x RJ-45 10/100Mbps |
| USB | - |
| RS232 | - |
| SFP Cage | - |
| CAN | - |
| I/O | 1x DI , 1x DO |
| MicroSD | MicroSD card slot (System log) |
| Wi-Fi / GPS / PoE | |
| 2.4/5 Ghz | Yes |
| PoE Information | |
| PoE-PSE | - |
| Wifi | |
| Antenna | 2 x SMA |
| Standards | 802.11n, 802.11g, 802.11b |
| Security | WEP, WPA,WPA2, WPA-PSK, WPA2-PSK, 802.1x |
| Modes | Access Point |
| Antenna Connectors | |
| Cellular Antenna | 2 x SMA |
| GPS Antenna | - |
| Power | |
| Power Input (DC) | 7-18V DC |
| Sleep Mode | - |
| Environmental | |
| Operating Temperature | -30...70C |
| Humidity | 10-95% |
| Mechanical | |
| Dimension | 27 x 90 x 93mm |
| Enclosure | Metal |
| Mounting | Din, Wall |
| Valmistaja / Brand | Advantech |
|---|
