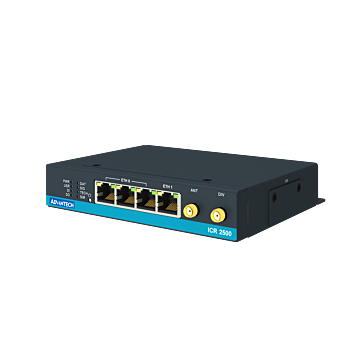

ICR-2531W, 4G Edge Gateway, Wifi
Tuotenro
ICR-2531W
Toimitusaika 21-30pv
ICR-2500, EMEA, 4x Ethernet , Wi-Fi, Metal, Without Accessories
- LTE Cat.4 with 3G/2G fallback
- 2× SIM for redundancy
- 4× Ethernet 10/100 Mbps (3+1 RJ45)
- 1× DI, 1× DO
- WiFi 802.11n
- Wide operational temperature range
- Wall and DIN mount options
- Linux based OS & SW customization
| Interface | |
| Region | EMEA |
| ETH Port | 4 |
| USB | - |
| RS232 | - |
| SFP Cage | - |
| CAN | - |
| I/O | 1x DI , 1x DO |
| MicroSD | - |
| Wi-Fi / GPS / PoE | |
| 2.4/5 Ghz | Yes |
| PoE Information | |
| PoE-PSE | - |
| Wifi | |
| Antenna | 1x R-SMA |
| Standards | IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz |
| Security | WEP, TKIP, AES, WPA, WPA2, WPA3, 802.1X |
| Modes | Access Point (up to 8 clients), Station, Multirole STA & AP |
| Antenna Connectors | |
| Cellular Antenna | 2 x SMA |
| GPS Antenna | - |
| Power | |
| Power Input (DC) | 9-48V DC |
| Sleep Mode | Yes |
| Environmental | |
| Operating Temperature | -40...75C |
| Humidity | 5-95% |
| Mechanical | |
| Dimension | 25 x 95 x 103mm |
| Enclosure | Metal |
| Mounting | Din, Wall |
