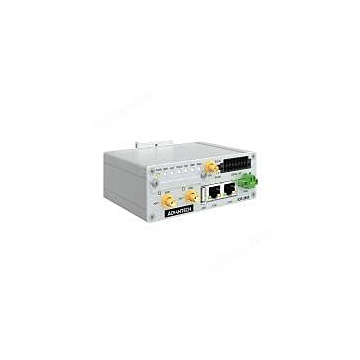

ICR-2834WA01, 4G Edge Gateway, Wifi, COM
Tuotenro
ICR-2834WA01
Toimitusaika 21-30pv
ICR-2800, EMEA, 2x Ethernet, 2× RS232/RS485, USB, Wi-Fi, Metal, EU ACC
- LTE Cat.4 with 3G/2G fallback
- 1.3 GB eMMC storage to host customer SW applications
- 2× SIM with cover, eSIM ready
- 2× Ethernet 10/100, 2× Serial RS232/RS485, USB Host 2.0
- WiFi 802.11n
- Metal case, DIN Rail mounting
- Wide operational temperature range
- Backup real time clock, Sleep mode
| Interface | |
| Region | EMEA |
| ETH Port | 2 |
| USB | 1 |
| RS232 | 2x RS232/485 |
| SFP Cage | - |
| CAN | - |
| I/O | 4x DI , 2x DO |
| MicroSD | - |
| Wi-Fi / GPS / PoE | |
| 2.4/5 Ghz | Yes |
| PoE Information | |
| PoE-PSE | - |
| Wifi | |
| Antenna | 1x R-SMA |
| Standards | IEEE802.11 ac/a/b/g/n 2.4 GHz / 5 GHz |
| Security | WPA, WPA2, WPA3, 802.1X |
| Modes | Access Point (up to 8 clients), Station, Multirole STA & AP |
| Antenna Connectors | |
| Cellular Antenna | 2 x SMA |
| GPS Antenna | - |
| Power | |
| Power Input (DC) | 9-48V DC |
| Sleep Mode | Yes |
| Environmental | |
| Operating Temperature | -40...75C |
| Humidity | 5-95% |
| Mechanical | |
| Dimension | 42 x 80 x 113mm |
| Enclosure | Metal |
| Mounting | Din, Wall |
