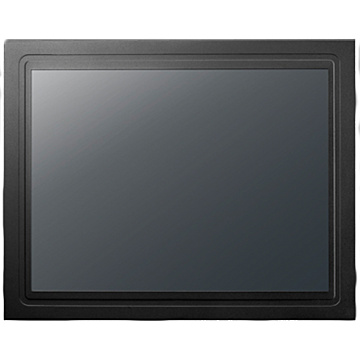

IDS-3212

Tuotenro
IDS-3212-xxx
Toimitusaika 21-30pv
  • 12.1" SVGA / XGA LCD panel with LED backlight for 20% power savings, and environmental protection
  • -20° C ~ +60° C wide range operating temperature
  • 5-wire resistive touch screen solution or 3mm tempered smudge resistant protected glass
  • Combo touch interface, both RS-232 and USB
  • Dual signal interface with VGA & DVI
  • Standard integrated frame
  • Versatile mounting method for rear mounting and VESA mounting
Display
Screen Size 12" TFT LCD
Screen Resolution 1024x768 XGA
Display Ratio 4 ::3
Contrast Ratio 700 ::1
Brightness 600 nits
Viewing Angle
Number of Colors
Touch Screen
Touchscreen Protective Glass / 5-wire Resistive/ PCAP
I/O Ports
Video 1x VGA, 1x DVI
Other Ports
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 12V DC
230V AC with adapter
Power Management
Multimedia
Integrated Speakers
Operating Temperature
Operating Temperature -20ºC to 60ºC
Humidity Range 5% to 95% non-condensing
Cooling System / Thermal Solution
Thermal Solution Passive - Fanless
Dimensions / Weight
Weight (kg) 2.5 kg
Dimensions 323.7 x 262.4 x 36.5mm
Enclosure
Bezel
Material Aluminum
Mounting Panel /VESA
Note *
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE / FCC
Lisätietoja
Näytön koko12.1"
Näytön signaali (input)VGA, DVI-D
