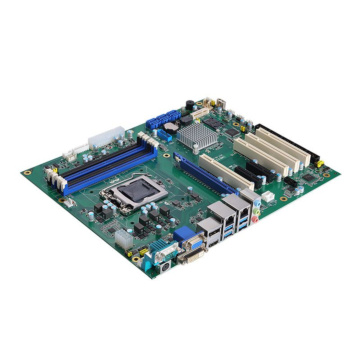

IMB523R

Tuotenro
IMB523RVDHGGA-Q370
Toimitusaika 14-22pv
  • LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor (Coffee Lake Refresh)
  • Four 288-pin DDR4-2666/2400 DIMM for up to 128GB of memory
  • DisplayPort, DVI-D, HDMI and VGA with triple-view supported
  • 5 SATA-600 with RAID 0/1/5/10
  • 1 PCI Express Mini Card slot
  • Two USB 3.1 Gen2 and four USB 3.1 Gen1
  • TPM 2.0 supported (optional)
Form Factor
Form Factor ATX


System
Processor LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Pentium® & Celeron® processor
Integrated Graphics Yes
Security Hardware
Chipset Intel® Q370
Storage 5 x SATA-600 with RAID 0/1/5/10
Storage Support
Memory 4 x 288-pin DDR4-2666/2400 DIMM, up to 128GB
Graphics Intel HD graphics Integrated
I/O Ports
USB 2.0 7 x USB 2.0
USB 3.0
USB 3.1 6x USB3.1
Serial 4 x RS-232 (Internal box header)
2 x RS-232/422/485 (COM 1: rear I/O; COM 2: internal box header)
Video 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPort++
Ethernet 1 x 10/100/1000 Mbps (Intel® i219-LM, iAMT)
1 x 10/100/1000 Mbps (Intel® i211-AT)
Other Ports DIO
MIC-in/Line-in/Line-out
1 x PS/2 keyboard and mouse
TPM TPM 2.0 (optional)
SMBus
Expansion
Expansion Interface 1 x PCIe x16 slot
2 x PCIe x4 slot
4 x PCI slot
1 x PCIe Mini Card slot with PCIe x1 & USB 2.0 & SATA
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage 24+8 pin ATX connector
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.7kg
Dimensions 305 x 244 mm
Certification
Certification CE
Lisätietoja
Valmistaja / BrandAxiomtek
SocketLGA 1151
Form FactorATX
