IMB700

Tuotenro
IMB700
Toimitusaika 21-30pv

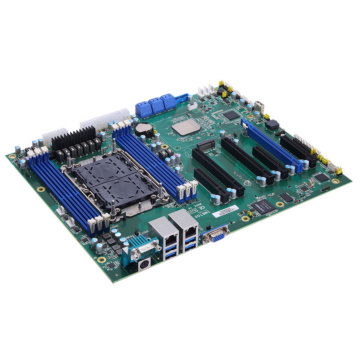

ATX Motherboard with LGA4189 Socket Intel® Xeon® Scalable Processor, Intel® C621A, 3 PCIe x16, 3 PCIe x8, VGA, NVMe
  • Intel® Xeon® Scalable processor (Ice Lake-SP)
  • Six 288-pin DDR4-3200 RDIMM/LRDIMM for up to 384GB of memory
  • 3 PCIe x16, 3 PCIe x8
  • 4 SATA-600 with RAID 0/1/5/10
  • Supports M.2 Key M
  • TPM 2.0 supported (optional)
  • Supports multiple graphic cards





Form Factor
Form Factor ATX


System
Processor Intel® Xeon® Scalable processor (TDP up to 270W)
Integrated Graphics Yes
Security Hardware
Chipset Intel® C621A
Storage 6 x SATA-600 with RAID 0/1/5/10
1 x M.2 key M 2280 with PCIe x4 signal
Storage Support
Memory 6 x 288-pin DDR4-3200 RDIMM, up to 384GB
Graphics Intel HD graphics Integrated
I/O Ports
USB 2.0 6 x USB 2.0 (internal box header)
USB 3.1 4 x USB3.1 Gen2
4 x USB3.1 Gen2 (internal box header)


Serial 1 x RS-232/422/485
Display 1 x VGA
Ethernet 2 x 10/100/1000 Mbps (Intel® i210-AT)
Other Ports DIO
HD Codec audio as MIC-in/Line-in/Line-out with audio kit AX93242 (optional)
1 x PS/2 keyboard and mouse
Expansion
Expansion Interface 1 x PCIe x16 slot (signal x16 or x8)
1x PCIe x16 slot (signal x0 or x8)
3 x PCIe x4 slot
1 x PCIe x4 slot (signal x1)
1 x PCI slot
Operating System
Operating System Windows 10
Power
DC Input / Source Voltage
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)
Dimensions 305 x 244 mm
Certification
Certification CE
Lisätietoja
Valmistaja Axiomtek
Socket LGA4189
Form Factor ATX
