IMB540

Tuotenro
IMB540
Toimitusaika 21-30pv

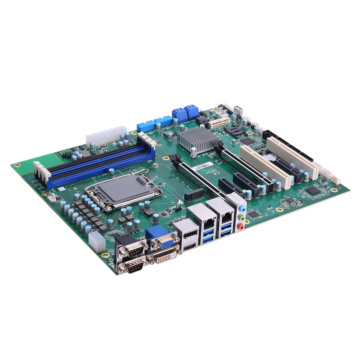

ATX Motherboard with LGA1700 Socket 12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® Processor, Intel® R680E, USB 3.2 Gen 2x1, SATA 3.0, GbE and 2.5GbE LAN, VGA, DisplayPort++, DVI-D, and HDMI

  • LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Alder Lake-S)
  • Four 288-pin DDR4-3200 ECC/non-ECC un-buffered Long-DIMM, up to 128GB
  • DisplayPort++, VGA, DVI-D and HDMI with quad view supported
  • Supports M.2 Key M 2280
  • 4 USB 3.2 Gen 2 and 4 USB 3.2 Gen 1
  • TPM 2.0 supported (optional)
Form Factor
Form Factor ATX


System
Processor LGA1700 socket 12th gen Intel® Core™ i9/i7/i5/i3, Pentium® or Celeron® processor (Up to 125W)
Security Hardware TPM 2.0 (optional)
Chipset Intel® R680E
Storage 4 x SATA-600 with RAID 0/1/5/10
M.2 M Key with 2280 in support of PCIe x4 via CPU
Memory 4 x 288-pin DDR4-3200 ECC/Non-ECC un-buffered Long-DIMM, up to 128GB (ECC memory is available for Intel® R680E only)
Graphics
I/O Ports
USB 2.0 4 x USB 2.0 (internal, pin header)
1 x USB 2.0 (internal, 180D type A)
USB 3.1 4 x USB 3.2 Gen2 (rear I/O)
4 x USB 3.2 Gen1 (internal)
Serial 4 x RS-232 (internal box header)
2 x RS-232/422/485 (rear I/O)
Video 1 x VGA
1 x DVI-D
1 x HDMI
1 x DisplayPort++
Ethernet 1 x 10/100/1000/2500 Mbps (Intel® I225-LM)
1 x 10/100/1000 Mbps (Intel® I211-AT)
Other Ports DIO 8-channel programmable
HD Codec audio as MIC-in/Line-in/Line-out
1 x PS/2 keyboard (internal box header)
Expansion
Expansion Interface 2 x PCIe Gen4 x16 slot (signal: 1 x PCIe x16 or 2 x PCIe x8)
3 x PCIe x4 slot open-ended (1 x Gen3 + 2 x Gen4) (signal by PCH)
1 x PCIe Mini Card slot (signal: PCIe x1)
2 x 32-bit PCI slot, default clock is 33 Mhz, PCI clock could be selected between 33 or 66 MHz by jumper (signal by PCH)
Operating System
Operating System Windows10 , Linux
Power
Power Input ATX connector
Power Requirements
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg)
Dimensions 305mm x 244mm
Certification
Certification CE
Lisätietoja
Valmistaja Axiomtek
Socket LGA1700
Form Factor ATX
