IMB711
Tuotenro
IMB711
Toimitusaika 21-30pv

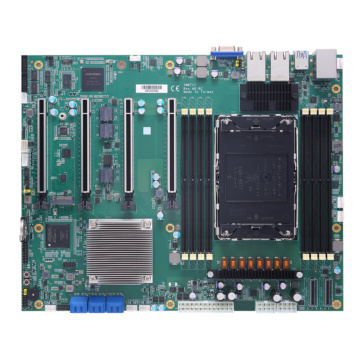

IEC 60601-1 Ready Medical-Grade ATX Motherboard with LGA4677 Socket 5th/4th Gen Intel® Xeon® Scalable Processors, Intel® C741, 4 PCIe x16, VGA, and NVMe
- 5th/4th Gen Intel® Xeon® Scalable processors
- 8 DDR5-5200 ECC RDIMM
- Supports up to 4 PCIe x16 double-slot expansion cards
- Supports 2 Mini Cool Edge IO (MCIO) connectors with PCIe Gen 5 x8
- Supports dual 10GbE LAN ports and 1 dedicated IPMI LAN port
- Supports TPM 2.0
- Supports redundant BIOS and BMC
| Form Factor | |
| Form Factor | ATX |
| System | |
| Processor | 5th/4th Gen Intel® Xeon® Scalable processors, up to 270W |
| Security Hardware | TPM 2.0 module |
| Chipset | Intel® C741 |
| Storage | 1 x NVMe M.2 Key M 2280 (PCIe Gen5 x4) 6 x SATA-600 with RAID 0/1/5/10 |
| Memory | 8 x DDR5-5600 R-DIMM ECC, up to 512GB memory |
| Graphics | ASPEED AST2600 |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 (header, internal) |
| USB 3.2 | 4 x USB 3.2 Gen1 |
| Serial | 1 x RS-232 (internal) |
| Video | 1 x VGA |
| Ethernet | 2 x 10GbE RJ-45 port with Intel® X550-AT2 1 x GbE RJ-45 port with a dedicated IPMI LAN, powered by Realtek RTL8211F |
| Other Ports | DIO 8-channel programmable SMBus PMBus IPMB |
| Expansion | |
| Expansion Interface | Slot 1, 2 & 3: PCIe x16 (Gen 5 x16 link) Slot 4: PCIe x16 (Gen 5 x8 link) Slot 5: M.2 Key M 2280 (PCIe Gen 4 x4 signal) 2 x MCIO (PCIe Gen 5 x8) |
| Operating System | |
| Operating System | Windows11, Windows10 , Linux |
| Power | |
| Power Input | ATX connector |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | |
| Dimensions | 305mm x 244mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA4677 |
| Form Factor | ATX |
