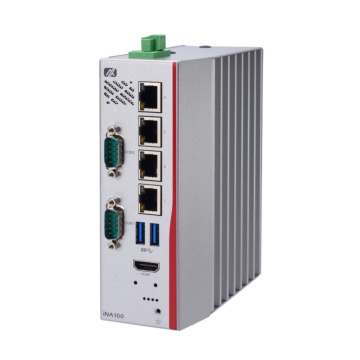

iNA100
Tuotenro
iNA100
Toimitusaika 21-30pv
- DIN-rail design with fanless and noiseless design
- Intel Atom® x5-E3930 processor (Apollo Lake)
- One DDR3L-1866 SO-DIMM for up to 8GB of memory
- Four GbE RJ-45 (Intel® i211)
- PCI Express Mini Card slot for wireless module
- Supports 2 COM, 4 GbE LAN, 2 USB 3.0 and 1 HDMI
- Suitable ICS cybersecurity/critical infrastructure protection
| System | |
| Processor | Intel Atom® x5-E3930 processor (Apollo Lake) |
| CPU Performance | |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x Half-size mSATA (occupied 1 x PCI Express Mini
Card slot) 1 x Internal 2.5" SATA drive (9.5 mm height) |
| Storage Support | |
| Memory | 1 x DDR3L-1866 SO-DIMM, up to 8GB non-ECC/ECC memory |
| Audio | |
| Graphics | 1 x HDMI |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 2x USB 3.0 |
| Serial | 1x RS-232/422/485 1x RS-232 |
| Video | 1 x HDMI |
| Ethernet | 4x GbE LAN , RJ-45 |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x Half-size PCI Express Mini Card slot with
SATA/USB signal 1 x Full-size PCI Express Mini Card slot with USB signal |
| Operating System | |
| Operating System | Windows® 10, LINUX |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 1.1 kg |
| Dimensions | 150 x 120 x 54 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | DIN-rail / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|
