iNA200

Tuotenro
iNA200
Toimitusaika 21-30pv

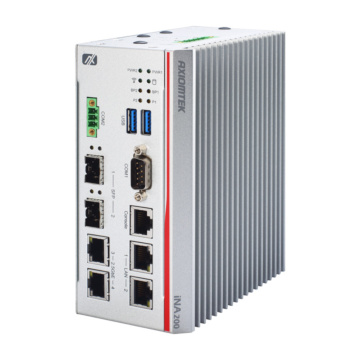

DIN-rail cybersecurity gateway with Intel Atom® x6212RE/x6414RE processor and up to 6 LAN



  • Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
  • DDR4-3200 SO-DIMM, up to 32GB
  • 2 GbE LAN, 2 2.5GbE LAN, and 2 SFP
  • Wide operating temperature from -40°C to 70°C
  • Wide power input of 9 to 36 VDC with redundant backup input
  • Supports 5G with M.2 Key B 3042/3052
  • Supports TPM 2.0
  • Ideal for OT field site cybersecurity and secured edge
Muokkaa iNA200
iNA200

* Pakolliset kentät

Tuote
iNA200
iNA200

0,00 EUR

Yhteenveto
    System
    Processor Intel Atom® x6212RE/x6414RE processor (Elkhart Lake)
    Security Hardware TPM2.0
    Chipset SoC integrated
    Storage 1 x 2.5" SATA 3.0 SSD
    1 x 16GB eMMC onboard
    Memory 1 x SO-DIMM DDR4, up to 32GB
    Graphics
    I/O Ports
    USB 2.0
    USB 3.0 2x USB 3.0
    Serial 1 x RS-232/422/485 (DB9)
    1 x RS-485 (terminal block)
    Video 1 x HDMI
    Ethernet 2 x 10/100/1000 Mbps (Marvell 88E1512) with LAN Bypass
    2 x 2.5G (Intel® I225-IT) with LAN Bypass and TSN function
    2 x 1G SFP (Intel® I210-IS)
    Other Ports 1 x Console port (RJ-45)
    Expansion
    Expansion Interface 1 x M.2 key B 3042/3052 slot (PCIe + USB interface)
    1 x Full-size PCIe Mini Card slot (USB + SATA interface)
    Operating System
    Operating System Windows® 10 / LINUX
    Power
    DC Input / Source Voltage Power Input Voltage 9~36VDC
    (typical 12/24V) with 2 terminal blocks for redundant backup input
    Operating Temperature
    Operating Temperature -40°C ~ +70°C with W.T. SSD
    Humidity Range 0% ~ 95%, non-condensing
    Cooling System / Thermal Solution
    Thermal Solution Passive - Fanless
    Dimensions / Weight
    Weight (kg) 1.5 kg
    Dimensions 88 x 127 x 150mm
    Enclosure
    Material Aluminum / Steel
    Mounting Din-rail
    Certification
    Certification CE, FCC
