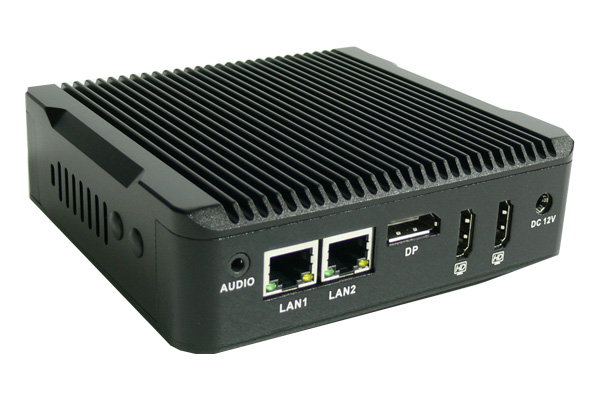

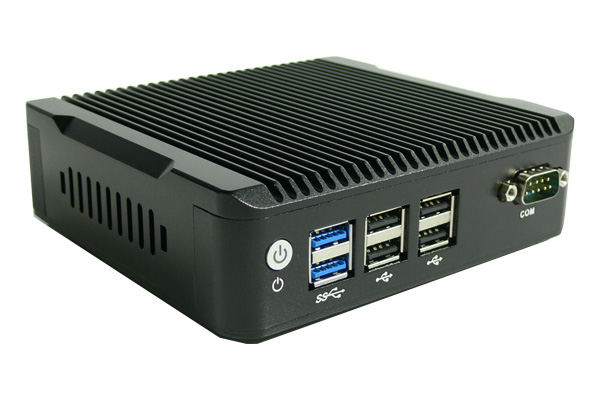

IPC-401 Fanless PC

Tuotenro

IPC-401

Toimitusaika 14-22pv

224,60 EUR 181,13 EUR 272,80 EUR

Muisti

4GB DDR3L + 37,20 EUR 30,00 EUR

8GB DDR3L + 74,40 EUR 60,00 EUR

Kiintolevy

120GB SATA3 FLASH SSD (Consumer class) + 37,20 EUR 30,00 EUR

240GB SATA3 FLASH SSD (Consumer class) + 55,80 EUR 45,00 EUR

Option

Ei mitään

WLAN +antenni + 37,20 EUR 30,00 EUR

Käyttöjärjestelmä

Ei mitään

Windows 10 IoT Ent 64-bit + 80,60 EUR 65,00 EUR

Fanless Embedded System, 1.6Ghz Intel N3160 cpu, DP, 2x HDMI, 2x GbE LAN, 6x USB, 2x COM

Ominaisuudet

*1.6Ghz Intel N3160 CPU
*Fanless system
*Small size

Pakkaus sisältää

IPC-401 Fanless PC
*1.6Ghz Intel N3160 CPU (4-core)

*230V AC adapter

Spesifikaatiot

System
Processor	1.6Ghz Intel N3160 CPU (4-core)
CPU Performance
Security Hardware
Chipset	SoC
Storage	1x 2.5" SATA SSD/HDD Bay 1x mSATA
Storage Support
Memory	1x 204-Pin DDR3L 1066 / 1333MHz SO-DIMM (un-buffered and non-ECC), max. up to 8 GB
Graphics	2 x HDMI 1 x DisplayPort
I/O Ports
USB 2.0	4x USB2.0
USB 3.0	2x USB 3.0
Serial	1x RS-232
Video	2 x HDMI, 1 x DP
Ethernet	2x Gbe RJ45 , RTL 8111E
Other Ports	Line-out
Expansion
Expansion Interface	1 x mPCIE (half-size) (for WIFI card)
Operating System
Operating System	Windows® 7/10, Linux
Power
DC Input / Source Voltage	Power Input Voltage 12VDC 230V AC-DC Adapter
Operating Temperature
Operating Temperature	Operating Temperature 0°C to 55°C , Normal temp SSD Operating Temperature -10°C to 55°C , Wide-temp SSD
Humidity Range	10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive - Fanless
Dimensions / Weight
Weight (kg)	1.2 kg
Dimensions	13512540mm
Enclosure
Bezel
Material	Aluminum / Steel
Mounting	Wall mount / VESA mount / DIN Rail Mount / Side Mount/
Peripherals & Devices
Accessories
Extra Features
Certification
Certification	CE, FCC certified
