IPC-606
Tuotenro
IPC-606-i3
Toimitusaika 14-22pv
545,93 EUR 435,00 EUR

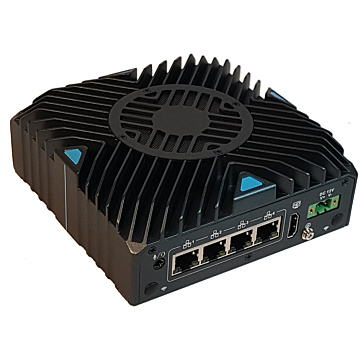

Embedded System, Intel 10th Gen i3 CPU, HDMI, 4x GbE LAN, 6x USB
- 10th Gen Core-i CPU, i3-10110U Ultra Low Voltage
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- HDMI display
- 90W power adapter for more power hungry applications
- 6x USB3.1
- 4x GbE LAN, RJ-45 (Intel i210)
| System | |
| Processor | Intel® Core™ i3-10110U processor (2-Core, 2.1 Ghz) |
| CPU Performance | |
| Chipset | |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Storage Support | |
| Memory | 1x DDR4 260-pin SO-DIMM socket, support up to 32 GB |
| I/O Ports | |
| USB 2.0 | - |
| USB 3.0 | 6x USB 3.1 |
| Serial | - |
| Video | 1 x HDMI |
| Ethernet | 4 x RJ45 GbE (Intel i210-AT/i211-AT) |
| Other Ports | Audio |
| Operating System | |
| Operating System | Windows 10, Windows 11, Linux |
| Power | |
| Source Voltage | 12V DC 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x mcie slot 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC with normal temp hdd -20ºC to 50ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Double action, Outside chassis Fan Keep dust out of PCB board |
| Dimensions / Weight | |
| Weight (kg) | 0.95 kg |
| Dimensions | 135 x 135 x 48mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Kotelo tuuletin |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -10..50C |
