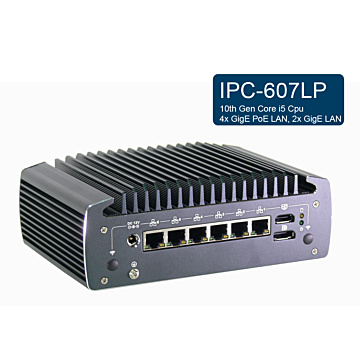

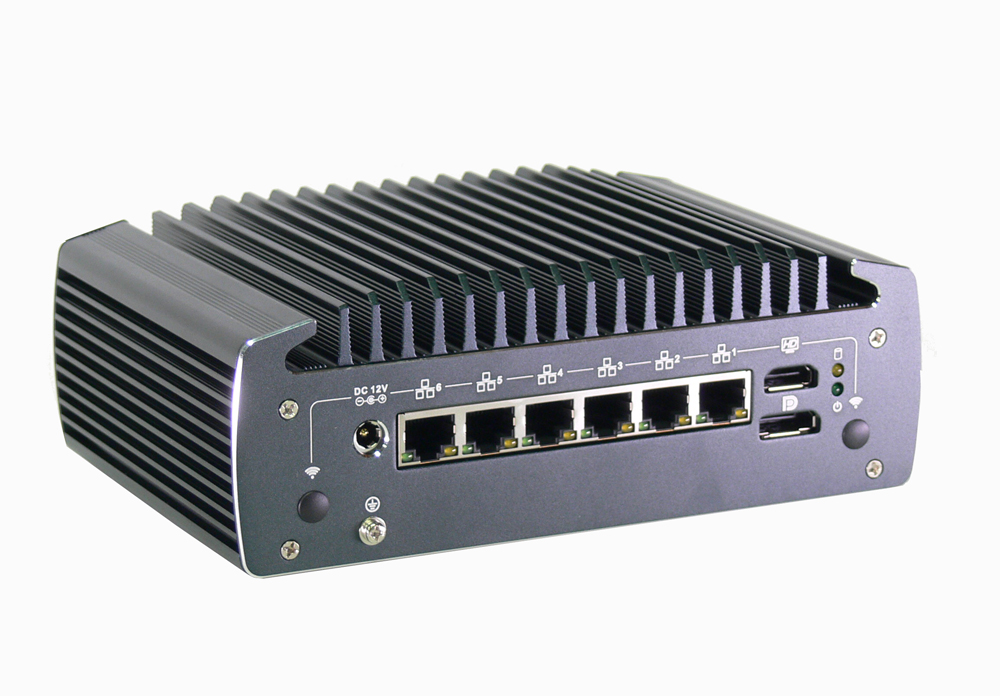

IPC-607LP
Tuotenro
IPC-607LP-i5
Toimitusaika 14-22pv
0,00 EUR
Fanless Embedded System, Intel 10th Gen i5 CPU, DP & HDMI, 6x GbE LAN (4x PoE), 6x USB, COM
- 10th Gen Core-i CPU, i5-10210U Ultra Low Voltage
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- HDMI display
- 120W power adapter for more power hungry applications
- 3x USB3.0, 3x USB2.0
- 2x GbE LAN, RJ-45

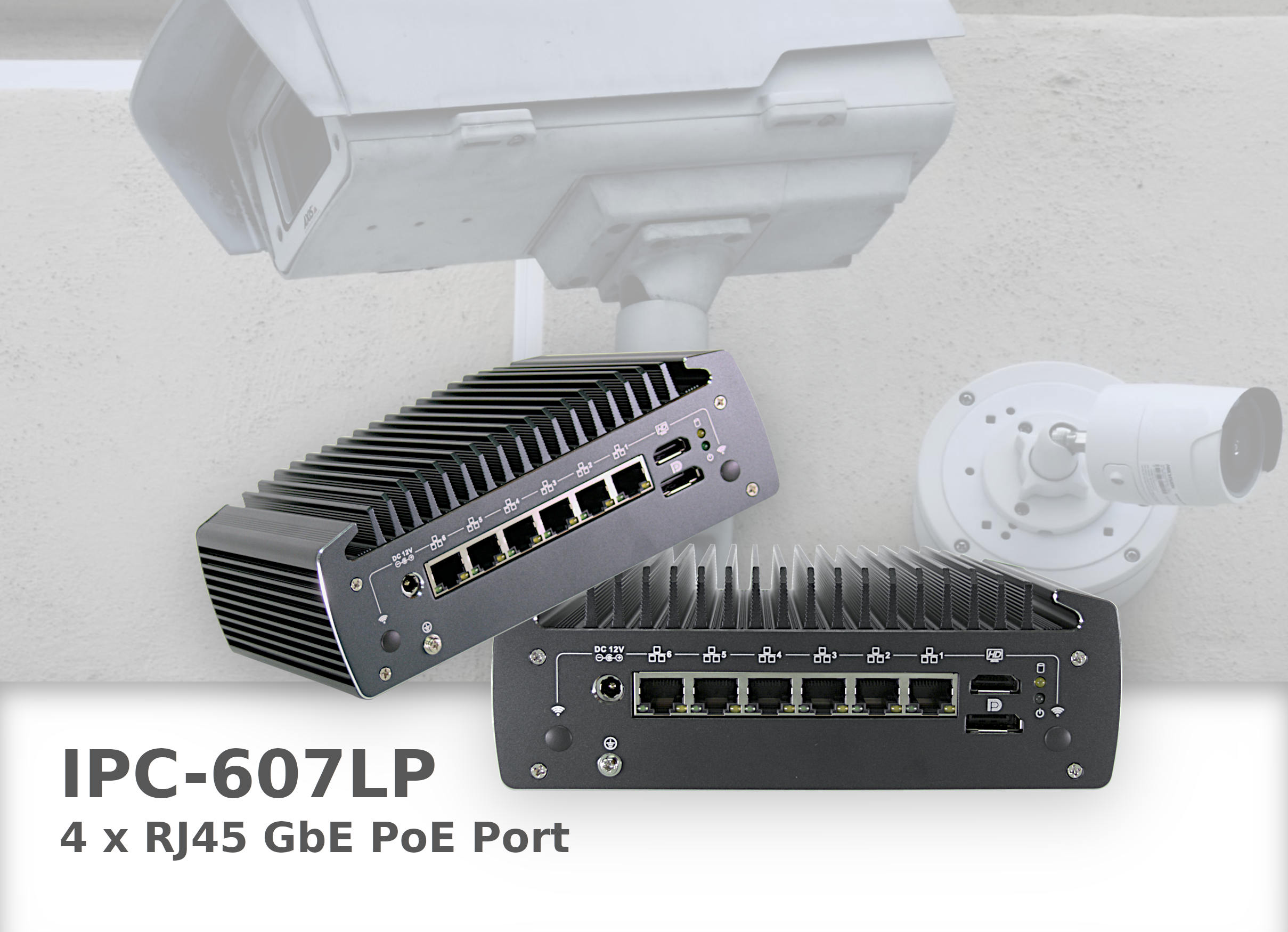

- 4x GbE PoE Port LAN, RJ-45
- COM Port with RJ45 connector
| System | |
| Processor | Intel® Core™ i5-10210U processor (4-Core, 4.1 Ghz) |
| CPU Performance | |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot 1 x 2.5” HDD/SDD bay |
| Security | TPM2.0 onboard |
| Memory | 1x DDR4 260-pin SO-DIMM socket, support up to 32 GB |
| I/O Ports | |
| USB 2.0 | 3x USB 2.0 |
| USB 3.0 | 3x USB 3.0 |
| Serial | 1x RJ45 COM port (Support Console) |
| Video | 1 x HDMI 1 x DisplayPort |
| Ethernet | 2 x RJ45 GbE (Intel 211-AT) 4 x RJ45 GbE PoE Port (Intel 211-AT) |
| Other Ports | |
| Operating System | |
| Operating System | Windows 11, Windows 10 Pro, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | 12V DC 230V AC-DC adapter 120W |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x mcie slot 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 45ºC with normal temp hdd -20ºC to 50ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.5 kg |
| Dimensions | 186 x 127 x 66mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Comet Lake (10th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -10..50C |
