IPC-616
Tuotenro
IPC-616
Varastossa
790,65 EUR 630,00 EUR

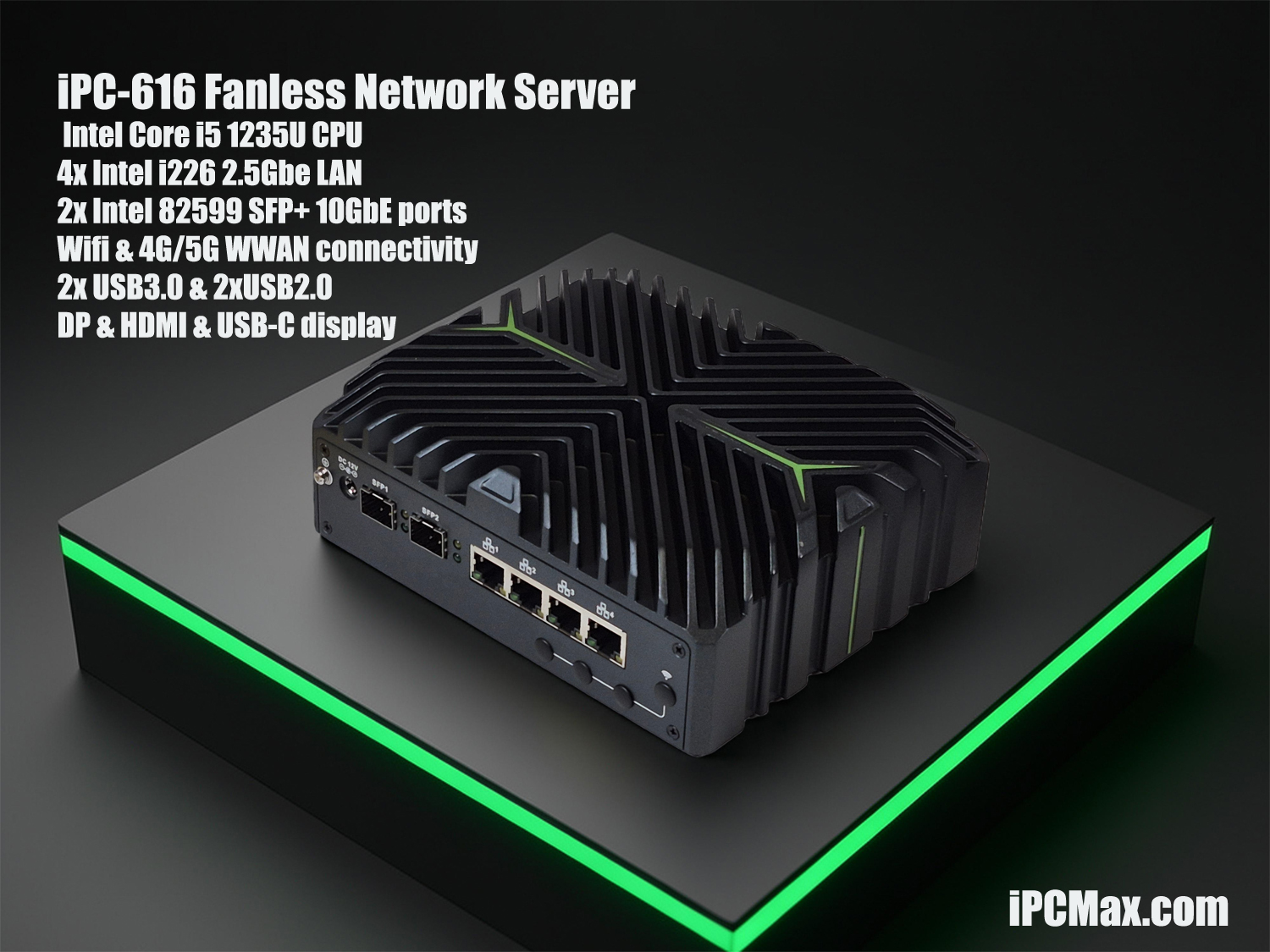

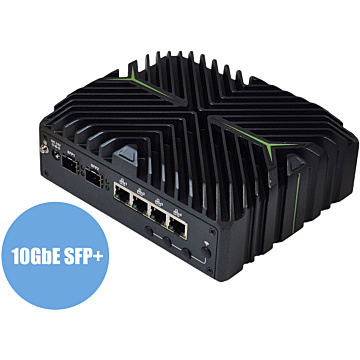

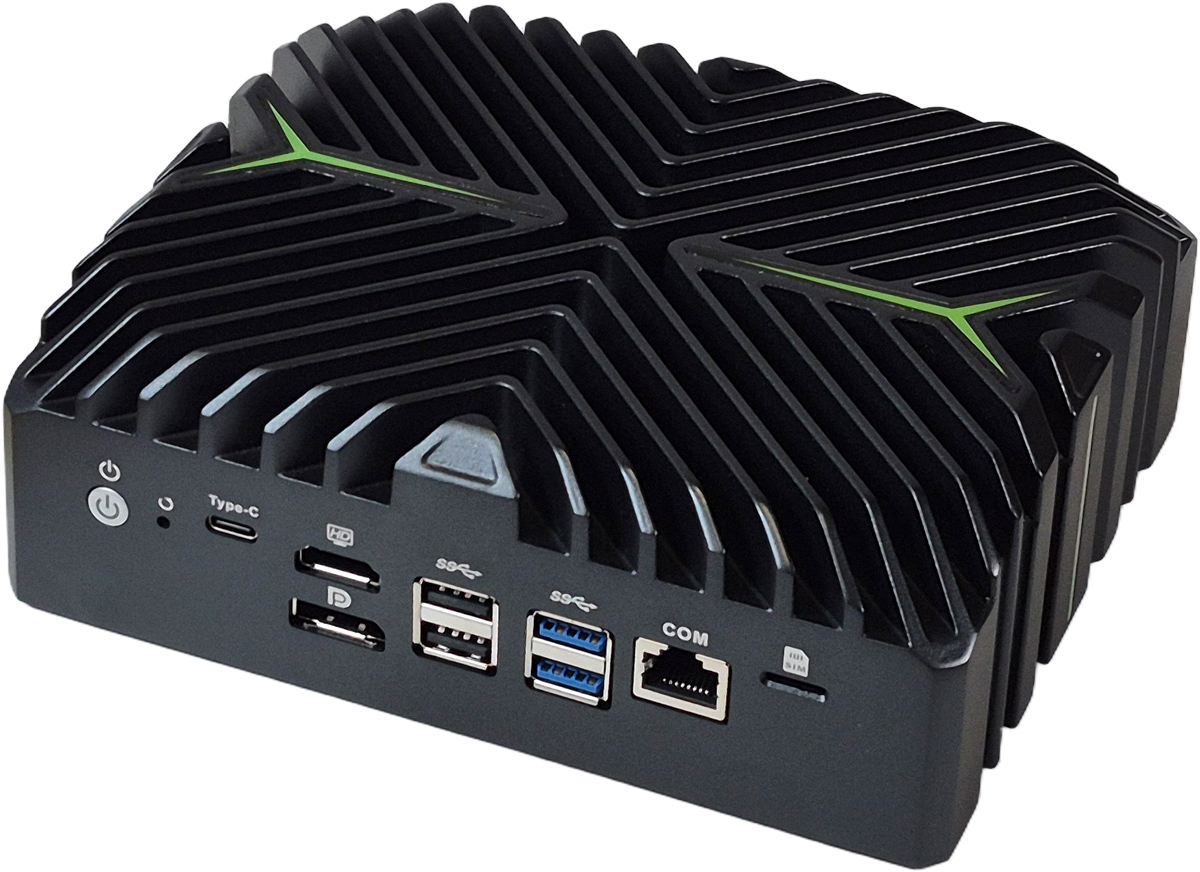

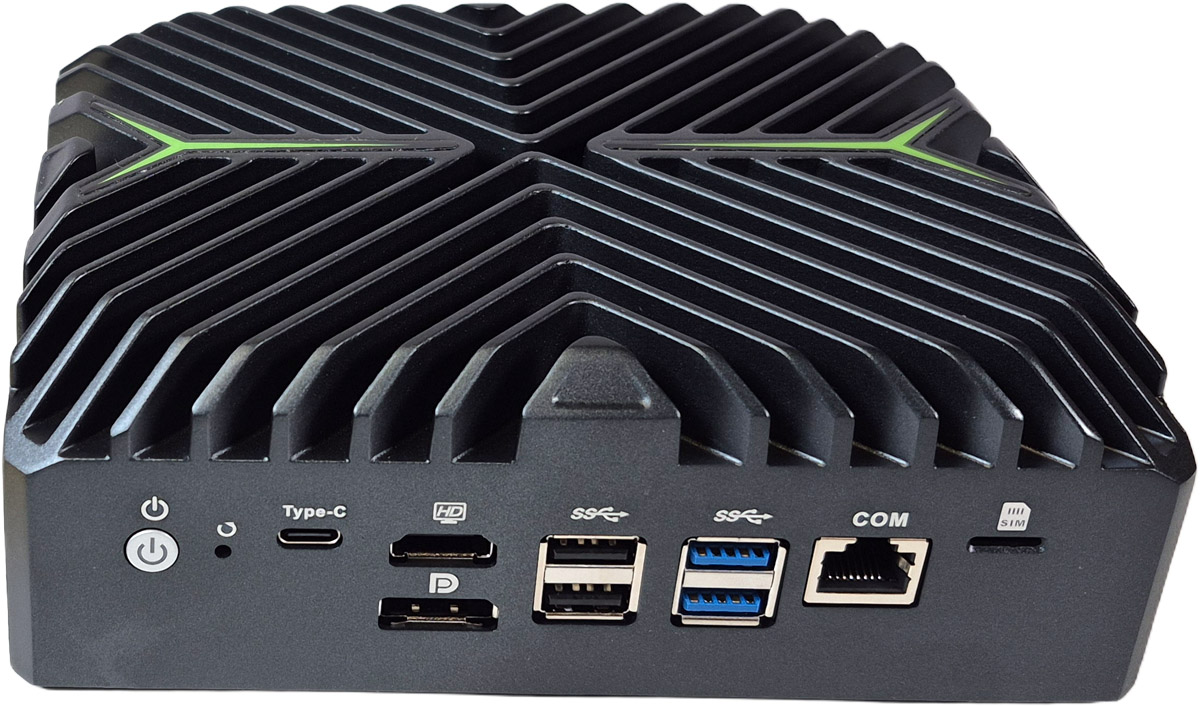

Fanless Network Server, Intel 12th Gen i5 CPU, 2x 10GbE SFP+, 4x 2.5GbE LAN, DP & HDMI, 4x USB, COM
- 12th Gen Core-i CPU, i5-1235U Ultra Low Voltage
- 2.5" SATA SSD bay
- Support M.2 NVME SSD
- DP & HDM & USB-C display
- 90W power adapter for more power hungry applications
- 2x USB3.2, 2x USB2.0
- 4x 2.5GbE LAN, RJ-45
- 2x 10GbE SFP+
| System | |
| Processor | Intel® Core™ i5-1235U processor (10-Core, 4.4 Ghz) |
| CPU Performance | 2x Performance-cores , 8x Efficient-cores |
| Chipset | SoC |
| Storage | 1 x M.2 2280 slot (NVME) 1 x 2.5” HDD/SDD bay |
| Graphics | Intel Iris XE Graphics |
| Memory | 2x DDR5 262-pin SO-DIMM socket, support up to 64 GB |
| I/O Ports | |
| USB 2.0 | 2x USB 2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | 1x COM (RJ-45 connector) |
| Video |
1x DisplayPort |
| Ethernet | 4 x RJ45 LAN 2.5GbE (Intel i226-V 2.5G) Intel vPro support (Lan1) 2 x 10GbE SFP+ slot (Intel 82599) |
| Other Ports | - |
| Operating System | |
| Operating System | Windows 11, Windows 10 IoT, Linux, PfSense |
| Power | |
| Source Voltage | 12V DC 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 2242/3052 B-key slot (USB3.0), (support 4G/5G) 1 x SIM card slot 1 x M.2 2230 E-key slot (support Wifi, BT) |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC with normal temp hdd -20ºC to 50ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | 1.35 kg |
| Dimensions | 170 x 140 x 58mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Wide Temp -10..50C |
