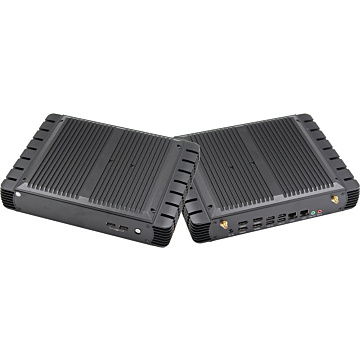

IPC-802
Tuotenro
IPC-802
Varastossa
930,00 EUR 750,00 EUR
Fanless Embedded System, 2.4Ghz Intel Core i5-1135G7 cpu, 4xHDMI, 2xGBe LAN, 6xUSB
- 11th Gen Intel Tiger Lake-U Processors (i5-1135G7)
- Dual channel SO-DIMM DDR4 Up to 64 GB
- Intel Iris Xe Graphics via HDMI2.0
- 4x HDMI, Multi monitor support
- 2xUSB3.2, 4xUSB2.0, 2xLAN, Mic-in, Line-out
- 1xSATA, 1xM.2 SSD NVMe
- 1x M.2 For WiFi, 1x M.2 for 4G/5G
- Low Power consumption
| System | |
| Processor | 11th Gen Intel® Core™ i5-1135G7 processor (4-Core, 2.4 Ghz) |
| Chipset | |
| Storage | 1 x M.2 2280 slot (NVMe) 1 x 2.5” HDD/SDD bay SATA3 |
| Memory | 2x DDR4 260-pin SO-DIMM socket, support up to 64 GB |
| I/O Ports | |
| USB 2.0 | 4x USB 2.0 |
| USB 3.0 | 2x USB 3.2 |
| Serial | - |
| Video | 4 x HDMI 2.0, 4K Resolution HD Display Intel® Iris® Xe Graphics |
| Ethernet | 2 x GbE Ethernet LAN, RJ-45 (Intel i211) |
| Other Ports | Audio, Realtek HD |
| Operating System | |
| Operating System | Windows 11 Pro, Windows 10 IoT, Linux |
| Power | |
| Source Voltage | 12V DC 230V AC adapter |
| Power Management | |
| Expansion Slots | |
| Expansion | 1 x M.2 for 4G/5G 1 x M.2 for WiFi 1 x SIM card slot |
| Operating Temperature | |
| Operating Temperature | 0ºC to 40ºC with normal temp ssd -20ºC to 60ºC with wide-temp ssd |
| Humidity Range | 10% to 95% non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Weight (kg) | - |
| Dimensions | 299mm x 200mm x 52.2mm |
| Certification | |
| Certification | CE / FCC |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Tiger Lake (11th Gen Core i3/i5/7) Mobile |
| Operating Temp | Wide Temp -10..50C |
