IPC-818C

Tuotenro

IPC-818C

Varastossa

1185,98 EUR 945,00 EUR

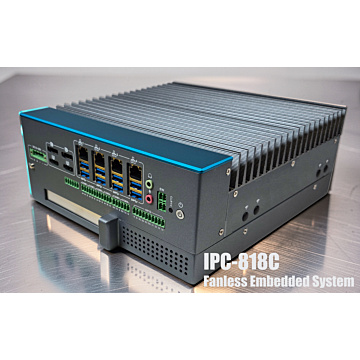

Fanless Embedded System, Intel 13th Gen i5 CPU, 2x HDMI, , 2x DisplayPort, 4x GbE LAN, 8x USB, 6x COM, PCIEx16 slot

Muokkaa IPC-818C

Barebone

IPC-818C Barebone + 0,00 EUR

CPU

4.5Ghz Intel Core™ i5-13500TE, 14-Cores, 35W + 332,58 EUR 265,00 EUR

RAM

SSD

NVME1

NVME2

WWAN

WLAN

Power Adapter

Chassis FAN

* Pakolliset kentät

Tuote

IPC-818C

Määrä

1185,98 EUR 945,00 EUR

Yhteenveto

Tuotekuvaus

System
Processor	Intel 13th i5-13500T CPU onboard Support Intel 12th/13th/14th Gen (Alder Lake-S / Raptor Lake-S CPU) LGA1700 (i3, i5, i7 by project)
Security Hardware	TPM2.0
Chipset	Intel Q670
Storage	1 x 2.5" SATA 3.0 SSD 2x M.2 2280 M-key (1xPCIe4.0x4/SATA, 1xPCIe4.0x4)
Memory	DDR5-4800/5600 SO-DIMM, up to 64GB
Graphics	Intel HD Graphics 730/770
I/O Ports
USB 2.0
USB 3.0	8x USB 3.1
Serial	6x COM (1-4 :RS485, 5-6 : RS232)
Video	2 x Display Port 2 x HDMI
Ethernet	4 x GbE (3x Intel® I210-AT, 1x Intel® i219-LM)
Other Ports	4/4 GPIO (optocoupled) 4-pos remote switch Audio
Expansion
Expansion Interface	1 x M.2 3052/3042 B-key (4G/5G) +Nano-SIM slot 1 x MiniPCIe (PCIe + USB signal) 2 x M.2 2280 M-key 1 x M.2 2230 E-key (Wi-Fi/BT) 1 x PCIex16 slot (max card size: 215x21x112mm, 60W)
Operating System
Operating System	Windows® 10 / Windows® 11/ LINUX
Power
DC Input / Source Voltage	12-24V DC input, 4pin Phoenix connector
Operating Temperature
Operating Temperature	0°C ~ +50°C with Normal Temp SSD '-20°C ~ +60°C with W.T. SSD
Humidity Range	5% ~ 95%, non-condensing
Cooling System / Thermal Solution
Thermal Solution	Passive – Fanless Optional 3x Chassis Fan (PCIE expansion area)
Dimensions / Weight
Weight (kg)	5.5 kg
Dimensions	230 x 253 x 96 mm
Enclosure
Material	Aluminum / Steel
Mounting	Desktop , Wall Mounting
Certification
Certification	CE
