IPC-A3588-8GB-32GB
Tuotenro
IPC-A3588-8GB-32GB
Varastossa
301,20 EUR 240,00 EUR

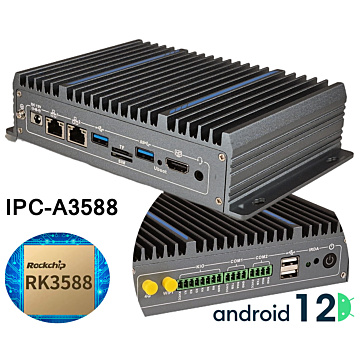

Industrial Android PC, Rockchip RK3588 ARM CPU
- Support Rockchip 3588 CPU
- Support dual Gigabit Ethernet ports
- WiFi6, Built-in MINIPCIe slot, support various 4G
- 4 USB, 2 RS232
- 6 KIO (GPIO)
- Support 9V-15V wide voltage input
- Built-in neural network NPU, up to 6Tops (RK3588)
| System | |
| Processor | Rockchip RK-3588, 4-Cores Cortex-A76 & 4-Cores Cortex-A55, NPU: 6TOPS |
| GPU | Mali-G610 MC4 |
| Chipset | SoC |
| Storage | 32GB eMMC (onboard) TF Card -slot |
| Memory | 8GB RAM (onboard) |
| Audio | Headset socket, 3.5mm |
| Wireless | Wifi6 Wlan, optional 4G LTE Bluetooth v5.0 |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 1 x USB 3.0 1 x USB 3.0 (OTG) |
| Serial | 2 x RS-232 |
| Video | 1 x HDMI 2.1 , supporting up to 8K resolution |
| Ethernet | 2 x 10/100/1000 Mbps , RJ-45 LAN |
| Other Ports | 6 x KIO / GPIO |
| Expansion | |
| Expansion Interface | 1 x Full-size PCI Express Mini Card with SIM slot |
| Operating System | |
| Operating System | Android 12 |
| Power | |
| DC Input / Source Voltage | 12VDC |
| Operating Temperature | |
| Operating Temperature | -20°C ~ +60°C |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | |
| Dimensions / Weight | |
| Weight (kg) | 0.83 kg |
| Dimensions | 185 x 121 x 44 mm |
| Enclosure | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
