IPC-G670-E2

Tuotenro
IPC-G670-E2
Varastossa

1349,14 EUR 1075,00 EUR

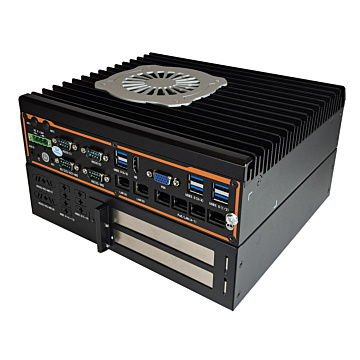

High Performance Embedded System with 12th/13th GEN Intel CPU, 6 LAN, 10 USB, 4COM, PCIEx16 & PCIEx8, 9-36V DC, FAN cooling

  • Support Intel 12th/13th generation processors, LGA1700, upto 65W
  • 2*SODDR4, support up to 64GB
  • 1*HDMI, 1*VGA
  • 6*Intel I210AT, 4 of them support POE+
  • 2*RS-232 COM,  2*RS-232/485 COM
  • 8*USB3.0, 3*USB2.0
  • PCIEx16 slot (x8 signal) & PCIEx8 slot
  • 9-36V DC Power Input
  • Fan cooling (outside electronics)
Muokkaa IPC-G670-E2
IPC-G670-E2 Barebone   + 891,05 EUR 710,00 EUR

* Pakolliset kentät

Tuote
IPC-G670-E2
IPC-G670-E2

1 380,50 EUR 1 100,00 EUR

Yhteenveto
  • Barebone:
    1 x IPC-G670-E2 Barebone
  • CPU:
    1 x 4.5Ghz Intel Core™ i5-13500TE, 14-Cores, 35W
  • RAM:
    1 x 8GB DDR4 Wide-Temp RAM
  • SSD:
    1 x 960GB SATA3 SSD, MLC/TLC
System
Processor 12th/13th Gen Core i CPU (35W / 65W TDP)
Security Hardware
Chipset Intel H770
Storage 1 x 2.5” SATA SSD
1 x mSATA
1 x M.2 slot, support Key-M, 2280 NVME PCIEx4
Memory 2 x DDR4-2400 SO-DIMM, up to 64GB
Graphics Integrated Intel® UHD Graphics
I/O Ports
USB 2.0 2x USB2.0
1x USB2.0 (internal, for dongle use)
USB 3.0 8 x USB 3.0
Serial 2 x RS-232
2 x RS-232/485
Video 1 x HDMI 1.4
1 x VGA
Ethernet 2 x GbE LAN (Intel® i210AT)
4 x GbE PoE+ LAN (Intel® i210AT)
Other Ports 1 x Audio
1 x Power button
4 x Antenna opening
Expansion
Expansion Interface 1 x M.2 slot, support Key-E(wifi)
1 x M.2 slot, support Key-B, 3042/3052, 5G module
1 x SIM slot
Operating System
Operating System Win 10, Win 11, Linux
Power
DC Input / Source Voltage 9-36V DC input
230V AC-DC adapter (optional)
Operating Temperature
Operating Temperature Normal Temp SSD:  0C..50C
Wide Temp Industrial SSD: -10C..50C
Humidity Range 10% ~ 90%, non-condensing
Cooling System / Thermal Solution
Thermal Solution External chassis Fan (outside electronics)
Dimensions / Weight
Weight (kg) 3.8 kg
Dimensions 229 x 209 x 126 mm
Enclosure
Bezel
Material Aluminum / Steel
Mounting Desk / Wall mounting kit / DIN
Peripherals & Devices
Accessories
Extra Features
Certification
Certification CE, FCC Class A
