IPC-P68
Tuotenro
IPC-P68
Varastossa
774,34 EUR 617,00 EUR

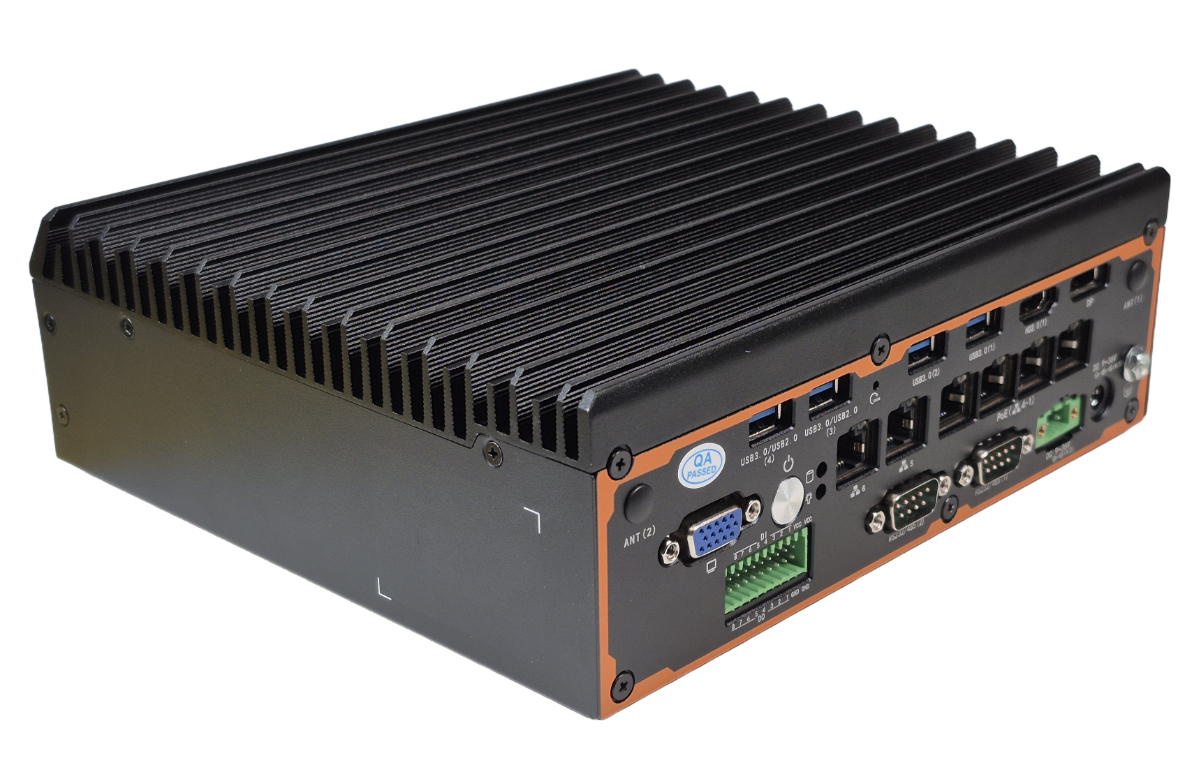

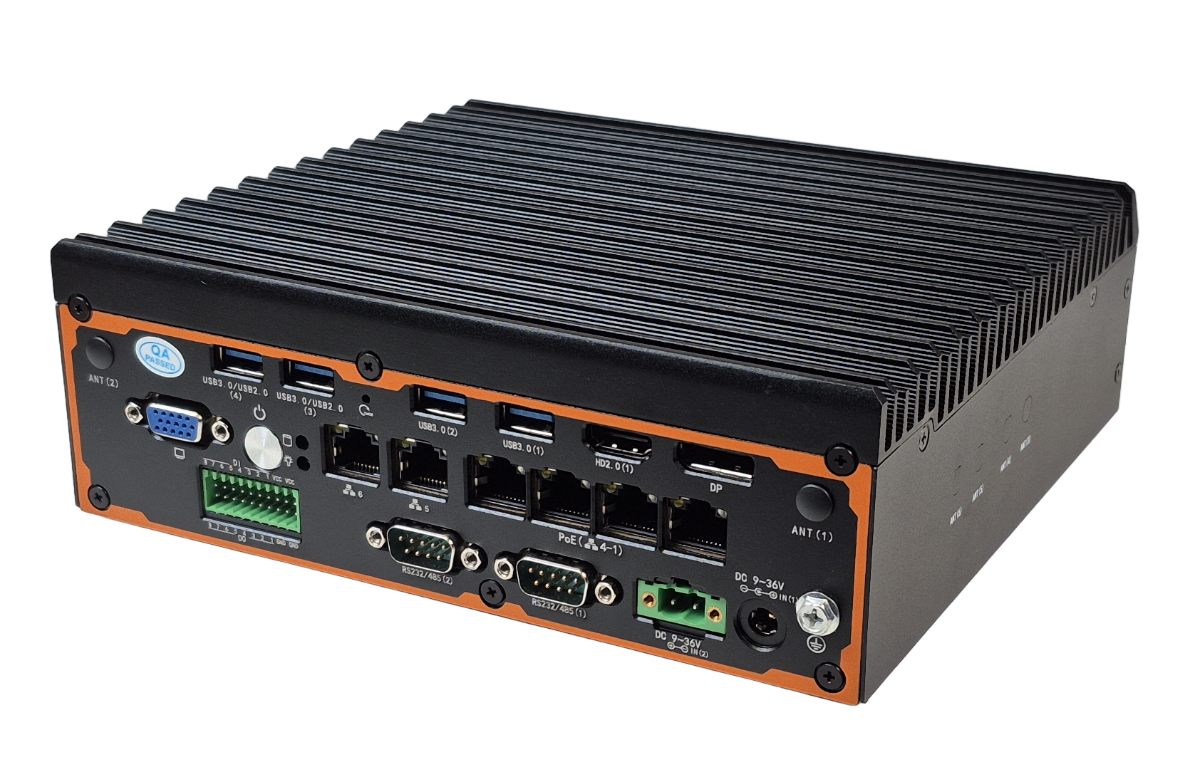

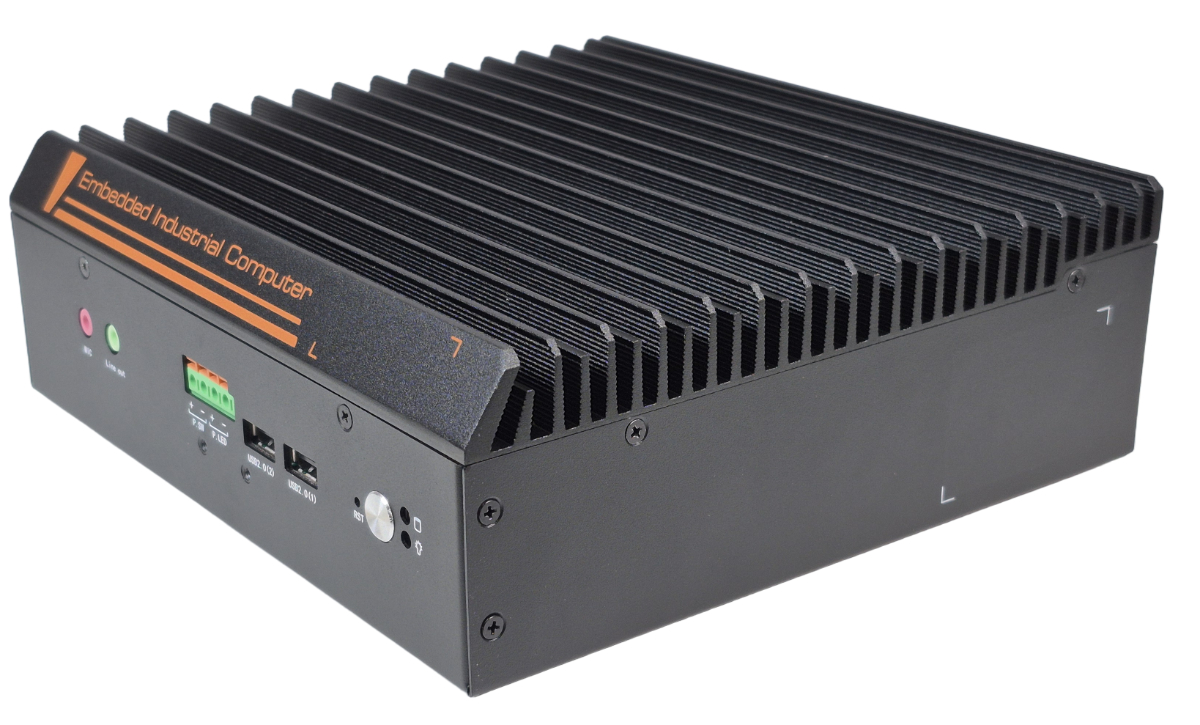

Fanless Embedded System, Intel 12th Gen i5-1235U CPU, DP, HDMI, VGA, 6x GbE LAN (4xPoE), 6x USB, 2xCOM, Isolated DIO
- 12th Gen CPU, i5-1235U Ultra Low Voltage
- 2.5" SATA SSD / mSATA / NVME (Pcie4x4)
- DisplayPort, HDMI & VGA display
- 4x USB3.0 & 2x USB2.0
- 6x GbE LAN (4x PoE, 15W)
- 9-36V DC input
| System | |
| Processor | 12th Gen Intel® Core™ i5-1235U 3.3Ghz processor (15W) |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x 2.5” SATA SSD 1 x mSATA 1 x M.2 NVME 2280 (Gen4x4) |
| Memory | 2 x DDR4-3200 SO-DIMM, up to 64GB |
| Graphics | Integrated Intel® Iris® Xe Graphics |
| I/O Ports | |
| USB 2.0 | 2x USB2.0 |
| USB 3.0 | 4 x USB 3.0 |
| Serial | 2 x RS-232/485 |
| Video | 1 x DisplayPort (1.4) 1 x HDMI 2.0 1 x VGA |
| Ethernet | 6 x GbE LAN (Intel® i210AT) (4x PoE 15W) |
| Other Ports | 8 IN 8 OUT DIO,
Isolated 2.5kV Audio Remote SW Remote Power LED |
| Expansion | |
| Expansion Interface | 1 x M.2 Key-B 3042/3052 slot
(4G /5G ) (internal SIM slot) |
| Operating System | |
| Operating System | Win 11, Linux |
| Power | |
| DC Input / Source Voltage | 9-36V DC input 230V AC-DC adapter (optional) |
| Operating Temperature | |
| Operating Temperature | 0C..50C with normal temp SSD -10C..50 with wide temp SSD |
| Humidity Range | 10% ~ 90%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive – Fanless |
| Dimensions / Weight | |
| Weight (kg) | 2.6 kg |
| Dimensions | 205 x 192 x 69 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |

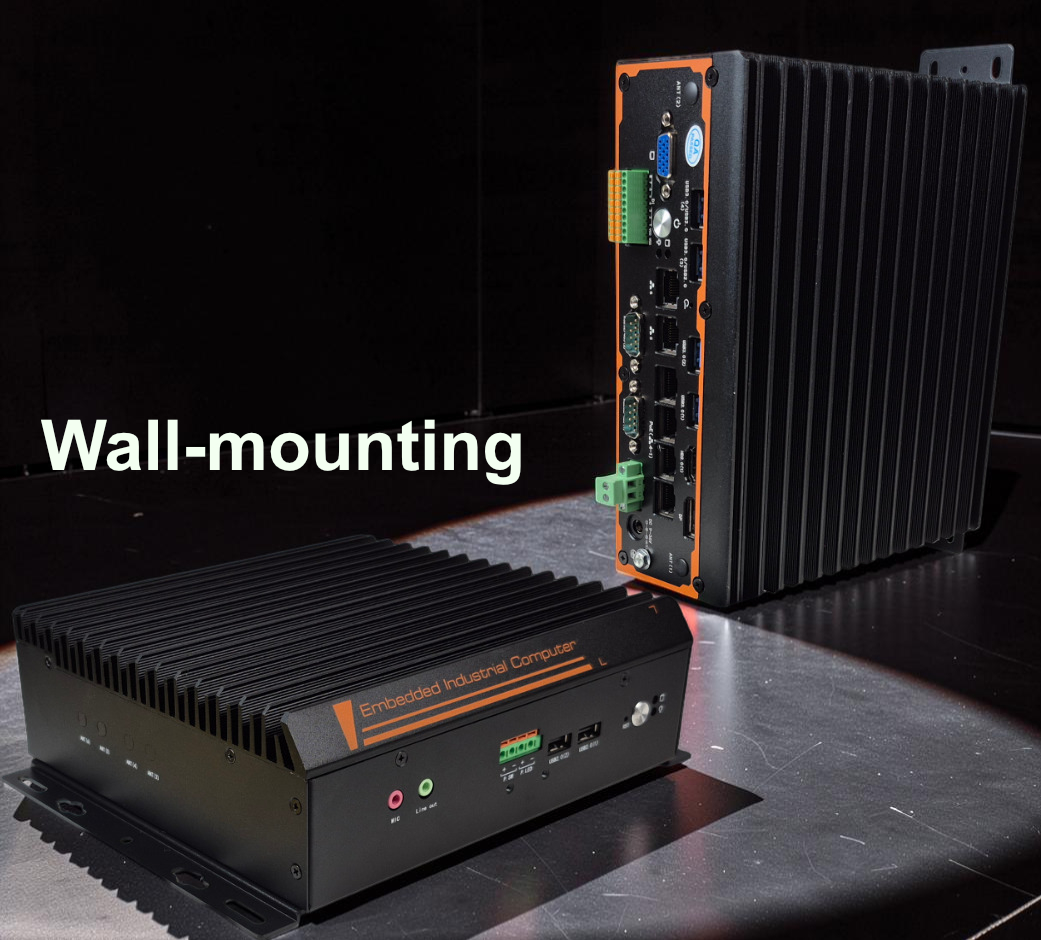

| Mounting | Desk / Wall mounting kit /DIN-RAIL |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE, FCC Class A |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Alder Lake (12th Gen Core i3/i5i7/i9) |
| Operating Temp | Normal Temp 0..45C |
