IPC-R270
Tuotenro
IPC-R270
Varastossa
1085,58 EUR 865,00 EUR

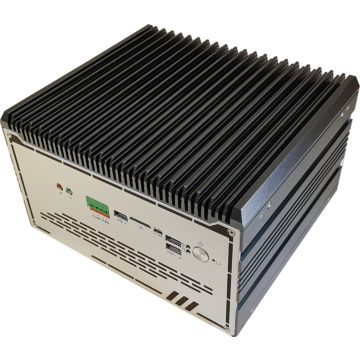

Fanless Embedded System, Intel 8/9th Gen Core i5/i7 CPU, PCIE & PCI -slot, HDMI & VGA, 5x GbE LAN (4x PoE), 9x USB, 6x COM, DIO
- High performance Intel Core i5/i7 CPU, 35W/65W
- HDMI & VGA display
- 7x USB3.0, 2x USB2.0
- 1x GbE LAN, RJ-45
- 4x GbE PoE Port LAN, RJ-45
- 2x COM RS-232
- 4x COM RS-485
- Isolated DIO (4in/4out)
- PCIEx16 -slot (x8 signal) & PCI -slot
- mPCIE -slot (4G)
- M.2 2230 Key-E for WIFI
| System | |
| Processor | Intel LGA1151 8th / 9th Gen Core i Series CPU, max 65W TDP |
| CPU Performance | |
| Security Hardware | |
| Chipset | Intel B250 Express |
| Storage | 1x 2.5” SATA3 HDD/SSD 1x mSATA |
| Memory | 2x DDR4 SO-DIMM Socket, support up to 64 GB |
| Audio | 1x MIC , 1x Line out |
| Graphics | Integrated Intel® UHD Graphics Dual independent display with 1x VGA, 1x HDMI |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 backpanel 2x USB2.0 internal for dongle use |
| USB 3.0 | 7x USB 3.0 |
| Serial | 2x RS-232 4x RS-232/422/485 |
| Video | 1x HDMI 1x VGA |
| Ethernet | 1x GbE LAN, RJ-45 (RTL8111H) 4x GbE PoE LAN , RJ-45 (Intel I210) |
| Other Ports | Mic-in/Line out 8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block 4pin Phoenix: 1x Remote Power On/Off Connector 1x Remote Power LED Connector |
| Expansion | |
| Expansion Interface | 1x PCIEx16 slot (x8 signal) (<75W GPU Card) 1x PCI slot 1x M.2 2230 E Key Socket for WIFI 1x M.2 2242 B Key Socket 1x Full-size Mini-PCIe Sockets for 4G 1x SIM Socket (connect mpcie socket) |
| Operating System | |
| Operating System | Windows® 10 / LINUX |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9~32VDC |
| Operating Temperature | |
| Operating Temperature | -10°C ~ +60°C with W.T. SSD, Memory |
| Shock/Vibration | Shock: Operating, 50 Grms Vibration: Operating, 5 Grms, 5-500 Hz, 3 Axes |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Passive - Fanless |
| Dimensions / Weight | |
| Weight (kg) | 4.8 kg |
| Dimensions | 235 x 212 x 135 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Desk / Wall mounting |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | CE |
| Jäähdytys | Fanless |
|---|---|
| CPU Family | Coffee Lake Refresh (9th Gen Core i3/i5/i7) |
| Operating Temp | Wide Temp -10..50C |
