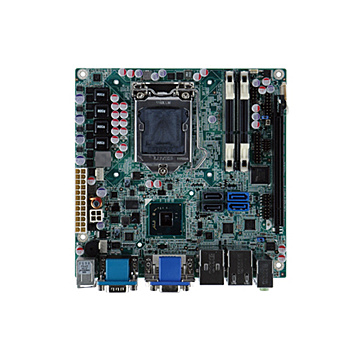

IEI KINO-AQ670 Mini-ITX emolevy
Tuotenro
kino-AQ670
Poistunut valikoimasta
LGA1155 Intel Core i7 /i5/ i3/ CPU, DDR3, VGA/ DVI-D, 2COM, Intel GbE, SATA 6Gb/s, USB 3.0, HD Audio
Ominaisuudet
* LGA1155 with Intel 2nd generation CoreCore i7/i5/i3/Pentium and Celeron
processor supported
* Dual-channel DDR3 1333/1066MHz supports up to 16GB
* Support dual independent displays by VGA and DVI-D
* High speed USB 5Gb/s and SATA 6Gb/s supported
* Intel® GbE LAN with Intel® AMT 7.0 support
processor supported
* Dual-channel DDR3 1333/1066MHz supports up to 16GB
* Support dual independent displays by VGA and DVI-D
* High speed USB 5Gb/s and SATA 6Gb/s supported
* Intel® GbE LAN with Intel® AMT 7.0 support
Spesifikaatiot
CPU
LGA1155 with Intel 2nd generation CoreCore i7/i5/i3/Pentium and Celeron
processor supported
Chipset
Intel Q67
Memory
Two 204-pin 1066/1333MHz dual-channel DDR3 SDRAM SO-DIMM supported (system max. 16GB)
IO
2 x RS-232
1 x TPM pin header
6 x USB 2.0
2 x USB 3.0
2 x SATA 3Gb/s
2 x SATA 6Gb/s with Raid 0, 1, 5, 10 support
1 x PS/2 KB/MS
Audio (Realtek ALC662 HD Audio codec)
1 x VGA
1 x DVI-D
Expansion
1 x PCIe x16 slot
LGA1155 with Intel 2nd generation CoreCore i7/i5/i3/Pentium and Celeron
processor supported
Chipset
Intel Q67
Memory
Two 204-pin 1066/1333MHz dual-channel DDR3 SDRAM SO-DIMM supported (system max. 16GB)
IO
2 x RS-232
1 x TPM pin header
6 x USB 2.0
2 x USB 3.0
2 x SATA 3Gb/s
2 x SATA 6Gb/s with Raid 0, 1, 5, 10 support
1 x PS/2 KB/MS
Audio (Realtek ALC662 HD Audio codec)
1 x VGA
1 x DVI-D
Expansion
1 x PCIe x16 slot
Form Factor | Mini-ITX |
---|
