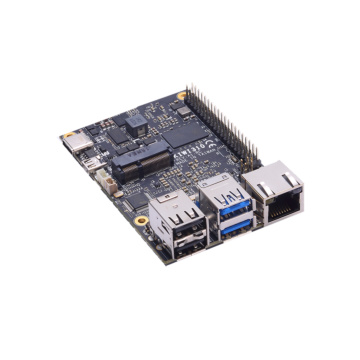

KIWI310

Tuotenro
KIWI310
Toimitusaika 21-30pv
  • Intel® Celeron® processor N3350
  • On-board LPDDR4 for up to 8GB of memory
  • 1 GbE LAN
  • On-board eMMC for up to 64GB
  • M.2 Key E
Form Factor
Form Factor 1.8” SBC


System
Processor Intel® Celeron® processor N3350
Security Hardware
Chipset SoC
Storage eMMC, up to 64GB
Storage Support
Memory On-board LPDDR4, up to 8GB
Graphics
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0 2 x USB 3.0
USB 3.1
Serial
Video 1 x Micro HDMI
Ethernet 1 x 10/100/1000 Mbps (Realtek RTL8111)
Other Ports
Expansion
Expansion Interface 1 x M.2 Key E (USB2.0, PCIe) in 2230
40-pin GPIO includes UART, I2C, SPI, GPIO
Operating System
Operating System
Power
DC Input / Source Voltage USB PD (supports USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A)
Power Requirements Intel® Celeron® N3350 @ 1.1 GHz 8GB LPDDR4
USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 85 x 56 mm
Certification
Certification CE
Lisätietoja
Valmistaja Axiomtek
Socket SoC
Form Factor 1.8" Embedded
