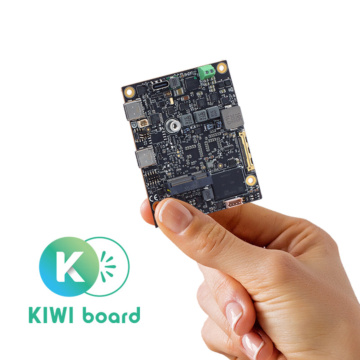

KIWI330-X7211-S
Tuotenro
KIWI330-X7211-S
Toimitusaika 21-30pv
- Intel Atom® x7211RE processor
- On-board 4GB LPDDR5
- 1 GbE LAN
- Onboard 64GB NVMe SSD storage
- Supports M.2 Key E socket
- Supports eDP for display
- Supports operating system: Linux, Windows®
| Form Factor | |
| Form Factor | 1.6” SBC |
| System | |
| Processor | Intel Atom® x7211RE processor |
| Security Hardware | |
| Chipset | SoC |
| Storage | BGA 64GB NVMe |
| Storage Support | |
| Memory | On-board 4GB LPDDR5 |
| Graphics | |
| I/O Ports | |
| USB 2.0 | Internal: 1 x USB 2.0 header (1 x 4-pin wafer) |
| USB 3.2 | Horizontal: 1 x USB 3.2 Type-C DP Alt Mode 1 x USB 3.2 Type-C Vertical: 1 x USB 3.2 Type-C |
| Serial | |
| Video | 1 x eDP |
| Ethernet | N/A |
| Other Ports | |
| Expansion | |
| Expansion Interface | 1 x M.2 Key E 2230 (USB 2.0, PCIe) |
| Operating System | |
| Operating System | |
| Power | |
| DC Input / Source Voltage | 12 VDC/5A 2-pin Phoenix type |
| Power Requirements | Intel® Celeron® N3350 @ 1.1 GHz 8GB LPDDR4 USB Type C PD 2.0, 9V/3A, 12V/3A, 15V/3A, 20V/3A |
| Operating Temperature | |
| Operating Temperature | -30°C to +60°C for Amston Lake SKU |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 72 x 56 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | SoC |
| Form Factor | 1.8" Embedded |
