LP-17A
Tuotenro
LP-17A7
Toimitusaika 21-30pv

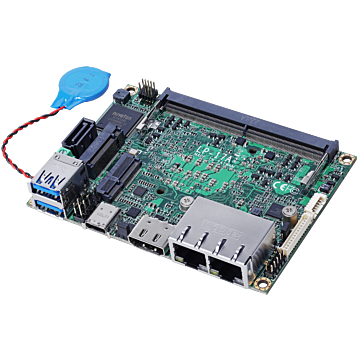

Pico-ITX motherboard with Intel® Alder Lake U Processor, HDMI, Type-C, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)
- Onboard Intel® Alder Lake U (i7-1265UE) Processor
- 1 x DDR5 SO-DIMM 4800 MHz up to 32GB
- Integrated HDMI, Type-C (DP Alt.Mode)
- 1 x Intel® Gigabit PHY LAN, 1 x Intel® 2.5 Gigabit LAN
- 1 x M.2 (Key E 2230)
- 1 x M.2 (Key M 2280) support PCIe Gen4 for NVMe or SATA
- 1 x SATA3, 2 x USB2.0, 2 x USB3.2 Gen2
- 1 x RS232/ RS422/ RS485, 1 x GPIO
- Support Watchdog Timer
- Support 4K resolution
- DC input 12V ±5%
| Form Factor | |
| Form Factor | PICO-ITX |
| System | |
| Processor |
Intel® Alder Lake U Processor, FCBGA1744 package |
| Integrated Graphics | Intel® UHD Graphics |
| Security Hardware | |
| Chipset | SoC |
| Storage | 1 x SATA-600 |
| Storage Support | |
| Memory | 1 x 262-pin DDR5 4800 SO-DIMM up to 32GB |
| I/O Ports | |
| USB 2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB3.2 |
| Serial | 1 x RS-232/422/485 |
| Video | 1 x HDMI |
| Ethernet | 1 x Intel® i219-LM Gigabit PHY LAN (support Intel® iAMT 16.0) 1 x Intel® i226-LM Gigabit LAN (up to 2.5GbE) |
| Other Ports | 1 x Type-C (DP Alt.Mode) DIO |
| Expansion | |
| Expansion Interface | 1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth 1 x M.2 2280 (Key M) support PCIe Gen4 for NVMe or SATA |
| Operating System | |
| Operating System | Windows 10 |
| Power | |
| DC Input / Source Voltage | 12V DC Input plug |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 100 x 72 mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Commell |
|---|---|
| Socket | SoC |
| Form Factor | Pico-ITX |
