LV-67127

Tuotenro
LV-67127
Toimitusaika 21-30pv

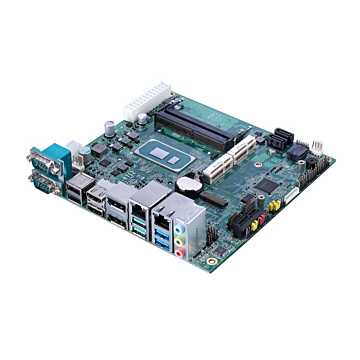

Mini-ITX Motherboard support Intel® Tiger Lake UP3 Processor

  • i7-1185G7E + Cooler fan
  • DDR4 up to 64 GB
  • HDMI, LVDS, DisplayPort
  • 1 x Giga LAN, 1 x Giga PHY LAN
  • 4 x USB 3.2 Gen2, 4 x USB 2.0
  • 2 x RS232/422/485, 4 x RS232
  • 1 x PS/2, HD Audio, 2 x SATA3, GPIO, SMBus
  • PCIe X1, 2 x Mini-PCIe socket 1 x M.2 2280(Key M)

CPU: i7-1185G7E + Cooler fan



Form Factor
Form Factor Mini-ITX

System
Processor Intel® Tiger Lake UP3 Processor, FCBGA1449 package
Integrated Graphics Intel® Iris® Xe Graphics
Security Hardware
Chipset
Storage 2 x SATA3
Storage Support
Memory 2 x 260-pin SO-DIMM DDR4 max 64GB
I/O Ports
USB 2.0 2 x USB 2.0
USB 3.0
USB 3.1 4 x USB3.2
Serial 4 x RS-232
2 xRS-232/422/485
Video 2 x HDMI
2 x DisplayPort
Ethernet 2 x 10/100/1000 Mbps
Other Ports 1 Audio
GPIO
1 x PS/2
Expansion
Expansion Interface 1 x PCIE X 1 slot
2 x PCIe Mini card (one supports mSATA)
1 x M.2 (Key M)
Operating System
Operating System WIN10
Power
DC Input / Source Voltage 24pin ATX power supply
Or
4-pin DC-9-35V
Operating Temperature
Operating Temperature Operating Temperature 0°C to 60°C
Humidity Range 10% ~ 95%, non-condensing
Dimensions / Weight
Weight (kg) 0.5kg
Dimensions 170 x 170 mm
Certification
Certification CE
Lisätietoja
Valmistaja / BrandCommell
Form FactorMini-ITX
