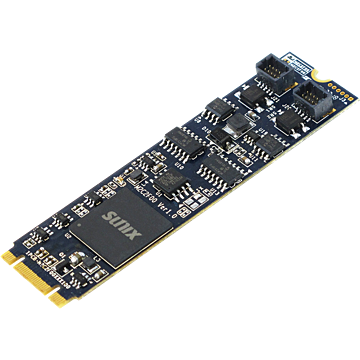

M2C2F00 M.2 CAN FD -Card

Tuotenro
M2C2F00
Toimitusaika 21-30pv

Industrial M.2 to 2-port CAN FD Communication Card

  • Suitable for M.2 slot with Key-M or Key-B based on PCI Express communication.
  • Equipped with high reliable SUNIX QiuNiu controller.
  • Complies with CAN specifications 2.0B and FD
  • CAN FD bit rates for the data field up to 8 Mbit/s
  • Plug-n-Play, I/O address and IRQ assigned by system.
  • Support proprietary SocketCAN driver, allowing users to program under Linux operating systems.
Processor
Interface M.2 PCIe
Controller SUNIX QiuNiu Controller
BUS PCI Express 2.0 x1, M.2 2280, Type 59-pin Key B+M Male
IRQ & IO Assigned by System
ESD Protection ±15KV IEC61000-4-2 Air Gap Discharge
±8KV IEC61000-4-2 Contact Discharge


CAN Communication CAN2.0 / CAN FD

2-Channel
Data bitrate 1Mbit/s, 8Mibit/s
Software Linux 5.x, SocketCAN
PCB Dimension 22x80mm
Lisätietoja
I/O CAN bus
Valmistaja Sunix
