MANO526
Tuotenro
MANO526
Toimitusaika 21-30pv

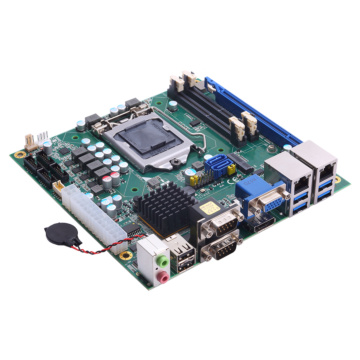

Mini-ITX SBC with LGA1151 Socket 9th/8th Gen Intel® Core™ Processor, Intel® Q370, VGA, DisplayPort++, eDP, 2 GbE LAN and HD Audio
- LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3 processor
- Intel® Q370 chipset
- 2 DDR4 SO-DIMM for up to 32GB of memory
- 4 USB 3.0 and 4 USB 2.0
- 6 COM ports
- 2 SATA-600 and 1 M.2 Key M
- PCIe x16 and M.2 Key E
| Form Factor | |
| Form Factor | Mini-ITX |
| System | |
| Processor | LGA1151 socket 9th/8th gen Intel® Core™ i7/i5/i3, Intel® Pentium® processors Gold/Celeron® processors (up to 65W) |
| Security Hardware | Onboard TPM2.0 |
| Chipset | Intel® Q370 |
| Storage | 2 x SATA-600 1 x M.2 Key M 2242/2280 (supports NVMe) |
| Memory | 2 x 260-pin DDR4-2666 SO-DIMM, up to 32GB |
| Graphics | |
| I/O Ports | |
| USB 2.0 | 4 x USB 2.0 |
| USB 3.0 | 4x USB3.0 |
| USB 3.1 | |
| Serial | 1 x RS-232/422/485 (with +5V/+12V power) 5 x RS-232 |
| Video | 1 x DisplayPort++ 1 x eDP 1 x VGA |
| Ethernet | 2 x 10/100/1000 Mbps Ethernet (Intel® i211-AT & Intel® i219-LM) |
| Other Ports | DIO Audio MIC-in/Line-in/Line-out |
| Expansion | |
| Expansion Interface | 1 x PCIe x16 1 x M.2 Key E 2230 |
| Operating System | |
| Operating System | Windows10 , Linux |
| Power | |
| Power Input | Standard 12V ATX power 24+4 pin ATX connector AT Mode Auto Power Function supported |
| Power Requirements | |
| Operating Temperature | |
| Operating Temperature | Operating Temperature 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Dimensions / Weight | |
| Weight (kg) | 0.5kg |
| Dimensions | 170mm x 170mm |
| Certification | |
| Certification | CE |
| Valmistaja / Brand | Axiomtek |
|---|---|
| Socket | LGA 1151 |
| Form Factor | Mini-ITX |
