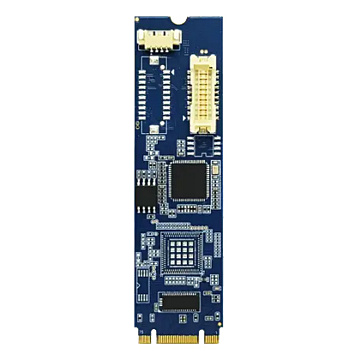

M.2 2280 (B+M key) 1-port 1GbE SFP Ethernet board (-40℃~+85℃)
Tuotenro
MEC-LAN-2001-SFP
Toimitusaika 14-22pv
M.2 2280 (B+M key) 1-port 1GbE SFP Ethernet board (-40℃~+85℃)
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
- Standard SFP modules supporting data rates of up to 1Gbps
- IEEE 802.3 for 1000Base-SX/1000Base-LX, IEEE 802.3ap for 1000Base-KX, PICMG 3.1 for 1000Base-BX
- Support Wake-on-LAN and Hot-Swap function
- Allowing for long-distance communication and easy upgrades
- Modular Design, flexibility and scalability
- Support multiple SFP ports, both single-mode or multi-mode
| System | |
| Controller | Intel I210-IS x 1 |
| Form Factor | M.2 B+M Key |
| Interface | 1x RJ-45 |
| Bus | Single-Lane x1 PCI-Express 5.0/2.5Gbps |
| Physical Characteristics | |
| Dimension | 22x42mm /60mm /80mm |
| Operating Temperature | -40..85C |
| Driver Support | Win7, Win10, Win11, Linux |
| Valmistaja / Brand | Cervoz |
|---|
