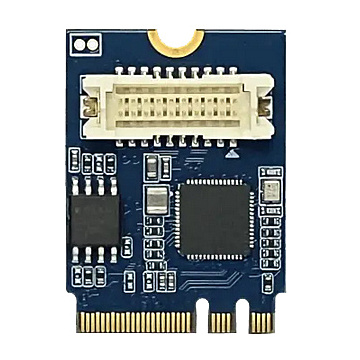

M.2 2230 (A+E key) 1 port 2.5GbE isolated Ethernet board
Tuotenro
MEC-LAN-2631i
Toimitusaika 14-22pv
M.2 2230 (A+E key) 1 port 2.5GbE isolated Ethernet board (-40℃~+85℃)
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.1
- Integrated 10/100/1000/2500Mbps transceiver
- IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3z and IEEE 802.3bz compliant
- IEEE 802.3x and IEEE 802.3z flow control
- Support Wake-on-LAN
| System | |
| Controller | Intel I226-IT x 1 |
| Form Factor | M.2 2230 A-E key |
| Interface | 1x RJ-45 |
| Bus | Single-Lane x1 PCI-Express 5.0/2.5Gbps |
| Physical Characteristics | |
| Dimension | 22x30mm |
| Operating Temperature | -40..85C |
| Driver Support | Win10/WIN11, Linux |
| Valmistaja / Brand | Cervoz |
|---|---|
| Connection | 1GBe LAN Ethernet IP |
