2x USB 3.2 Ports, Type-C, Mec-module
Tuotenro
MEC-USB-2012C
Toimitusaika 21-30pv

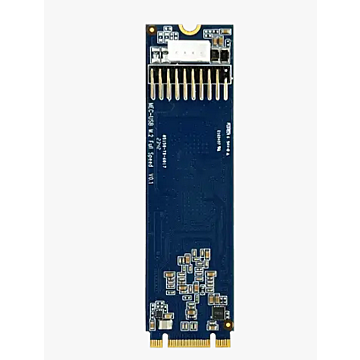

M.2 2280 2 port USB 3.2 board with Type-C cable
- Dual-Lane (x2) PCI-Express with throughput to 5.0/2.5 GT/s
- Fully compliant with PCI-Express Base Specification Rev.2.0
- Support simultaneous operation of multiple USB 1.1, USB 2.0, and USB 3.2 GEN1x1 devices
- Support individual two USB devices running 5Gbps at full speed
- USB data transfer rate of 1.5/12/480/5000 Mbps

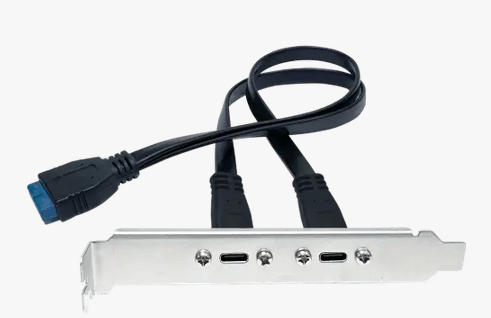

- With Type-C cable
| USB Interface | |
| USB Standards | USB 3.2 |
| Speed | 5 Gbps |
| Form factor |
M.2 2280 (B+M key) |
| No. of USB Ports | 2x USB3.2 Type-C |
| Controller | Renesas (NEC) μPD720202K8-701-BAA-A x2 |
| Bus |
Dual-Lane (x2) PCI-Express with throughput up to 5.0/2.5 GT/s |
| Power Parameters | |
| Power Consumption |
809mA@3.3V
|
| USB Power | 5V@1000A |
| Physical | |
| Dimensions | 22 x 80.00 mm |
| Operating Temperature | 0 to 70°C |
| Storage Temperature | –40°C ~ 95°C |
| Valmistaja / Brand | Cervoz |
|---|
