2x USB 3.2 Ports, Mec-module
Tuotenro
MEC-USB-M102-30
Varastossa

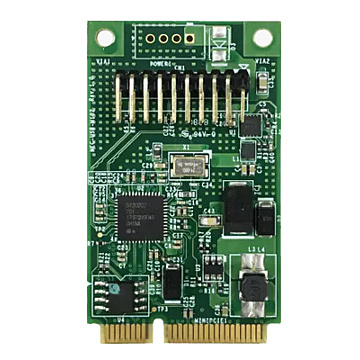

Industrial Mini PCIe USB Expansion Card
- Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps
- Fully compliant with PCI-Express Base Specification Rev 2.0 Two USB 3.2 Super-Speed ports
- USB data transfer rate of 1.5/12/480/5000 Mbps
- Support simultaneous operation of multiple USB 1.1, USB 2.0, and USB 3.2 GEN1x1 devices
- Universal Serial Bus 3.2 specification Revision 1.0 compliant
- Support Hot-Swap function
| System | |
| Controller | Renesas (NEC) μPD720202K8-701-BAA-A |
| Connector | USB3.0 |
| Bus Type | Single-Lane (x1) PCI-Express with throughput up to 5.0/2.5Gbps |
| Card Slot Interface | Mini-PCIe |
| Data rate | 1.5 / 12 / 480 / 5000 Mbps, Low Speed (1.5Mbps), Full Speed(12Mbps), High Speed(480Mbps), Super Speed(5Gpbs) |
| Cooling method | - |
| Physical Characteristics | |
| Dimensions | 30.00 x 50.95mm |
| System Support | |
| Windows 7/10/11 , LINUX | |
| Environmental | |
| Operating Temperature | -0°C ~ 70°C |
