mHPC202-CCL
Tuotenro
mHPC202-CCL
Toimitusaika 21-30pv

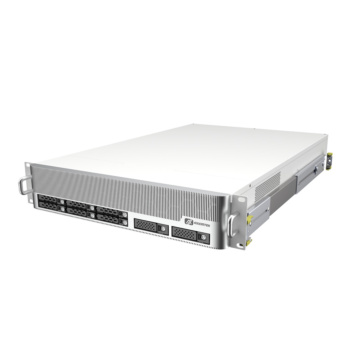

2U Rackmount Server with Dual 4th Gen Intel® Xeon® Scalable Processor, Intel® C741 PCH for HPC in Medical Applications
- Dual 4th Gen Intel® Xeon® Scalable processors
- 16 DDR5-4800 ECC registered DIMM
- Supports 2 U.3 SSD, 6 SATA SSD slots
- 1600W redundant power ATX power supply
- Supports DP full HD output
- Supports dual 10G Base-T
| System | |
| Processor | Dual socket FCLGA4677 for 4th Generation Intel® Xeon® Scalable processors |
| Security Hardware | |
| Chipset | Intel® C741, TDP 11W BMC: ASpeed AST2600 |
| Storage | 6 x 2.5" SATA SSD swappable slot; support RAID 0,1,5,10 2 x 2.5" U.3 SSD swappable slot; support RAID 0,1,5,10 |
| Memory | 16 x DDR5-4800 ECC RDIMM, up to 512GB |
| Graphics | 1 x DisplayPort 1.1a (2560x1600) |
| I/O Ports | |
| USB 2.0 | |
| USB 3.0 | 4x USB 3.0 1x USB 3.0 type C |
| Serial | n/a |
| Video | 1 x DP |
| Ethernet | 1 x Network card supports dual 10G Base-T 1 x IPMI 1 GbE LAN |
| Other Ports | |
| Expansion | |
| Expansion Interface | 2 PCIe riser cards inside: **Riser Card #0: 2 x PCIe x16 Gen 5.0 slot **Riser Card #1: 2 x PCIe x16 Gen 5.0 slot 1 x M.2 Key M 2280 slot, with PCIe x4 (NVMe) |
| Operating System | |
| Operating System | Windows® 10 |
| Power | |
| DC Input / Source Voltage | 2 x 1600W redundant ATX power supply |
| Operating Temperature | |
| Operating Temperature | 0°C ~ +40°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fan |
| Dimensions / Weight | |
| Weight (kg) | 13 kg |
| Dimensions | 430 x 700 x 88 mm |
| Enclosure | |
| Bezel | |
| Material | Aluminum / Steel |
| Mounting | Rack |
| Peripherals & Devices | |
| Accessories | |
| Extra Features | |
| Certification | |
| Certification | TBC |
| Jäähdytys | Kotelo tuuletin |
|---|
