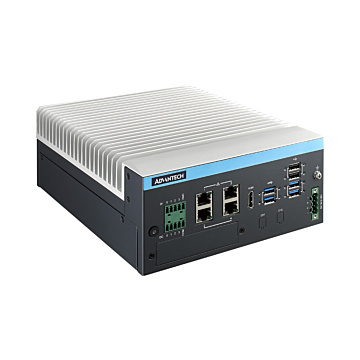

MIC-733-AO
Tuotenro
MIC-733-AO
Toimitusaika 21-30pv
AI System Based on NVIDIA® Jetson AGX Orin™
- Compact fanless design
- Embedded with NVIDIA® Jetson AGX Orin™ up to 275 TOPS
- Supports 4 x GbE (optional PoE), 4 x USB 3.2 Gen 2 (10 Gbit/s)
- Supports 2 x mPCIe, 2 x Nano SIM slots
- Supports Allxon 24/7 remote monitoring and OTA deployment; Azure Certified Devices
| System | |
| Processor | AGX Orin 32G: 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 2MB L2 + 4MB L3 AGX Orin 64G 12-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU, 3MB L2 + 6MB L3 |
| GPU | AGX Orin 32G: 1792-core NVIDIA Ampere GPU with 56 Tensor Cores, Maximum Operating Frequency: 930 MHz AGX Orin 64G: 2048-core NVIDIA Ampere GPU with 64 Tensor Cores] Maximum Operating Frequency: 1.3GH |
| Chipset | SoC |
| Storage | 1 x Micro SD slot 1 x M.2 Key B 2280 with PCIe x4 NVMe SSD slot |
| Memory | 32GB 256-bit LPDDR5 DRAM 64GB 256-bit LPDDR5 DRAM |
| AI Accelerator | NVIDIA® Jetson AGX Orin™ |
| I/O Ports | |
| USB 2.0 | 2 x USB2.0 |
| USB 3.0 | 4 x USB3.2 |
| Serial | 2 x RS-232/422/485 (On-board pin header) |
| Video | 1 x HDMI |
| Ethernet | 4 x 10/100/1000 Mbps |
| Other Ports | DIO 4/4ch |
| Expansion | |
| Expansion Interface | 2 x Full-size PCI Express Mini Card slot (USB + PCI
Express signal) 2 x Nano SIM slot 1 x M.2 3052 (B-Key, signal: PCIe + USB) |
| Operating System | |
| Operating System | Linux Ubuntu 18.04 or later |
| Power | |
| DC Input / Source Voltage | Power Input Voltage 9-36V DC |
| Operating Temperature | |
| Operating Temperature | 0°C to 60°C |
| Humidity Range | 10% ~ 95%, non-condensing |
| Cooling System / Thermal Solution | |
| Thermal Solution | Fanless |
| Dimensions / Weight | |
| Construction | Aluminum die-casting and heavy-duty steel, |
| Weight (kg) | 4.5kg |
| Dimensions | 192 x 230 x 87mm |
| Certification | |
| Certification | UL/CB/CE/FCC/BSMI/CCC |
| Jäähdytys | Fanless |
|---|
